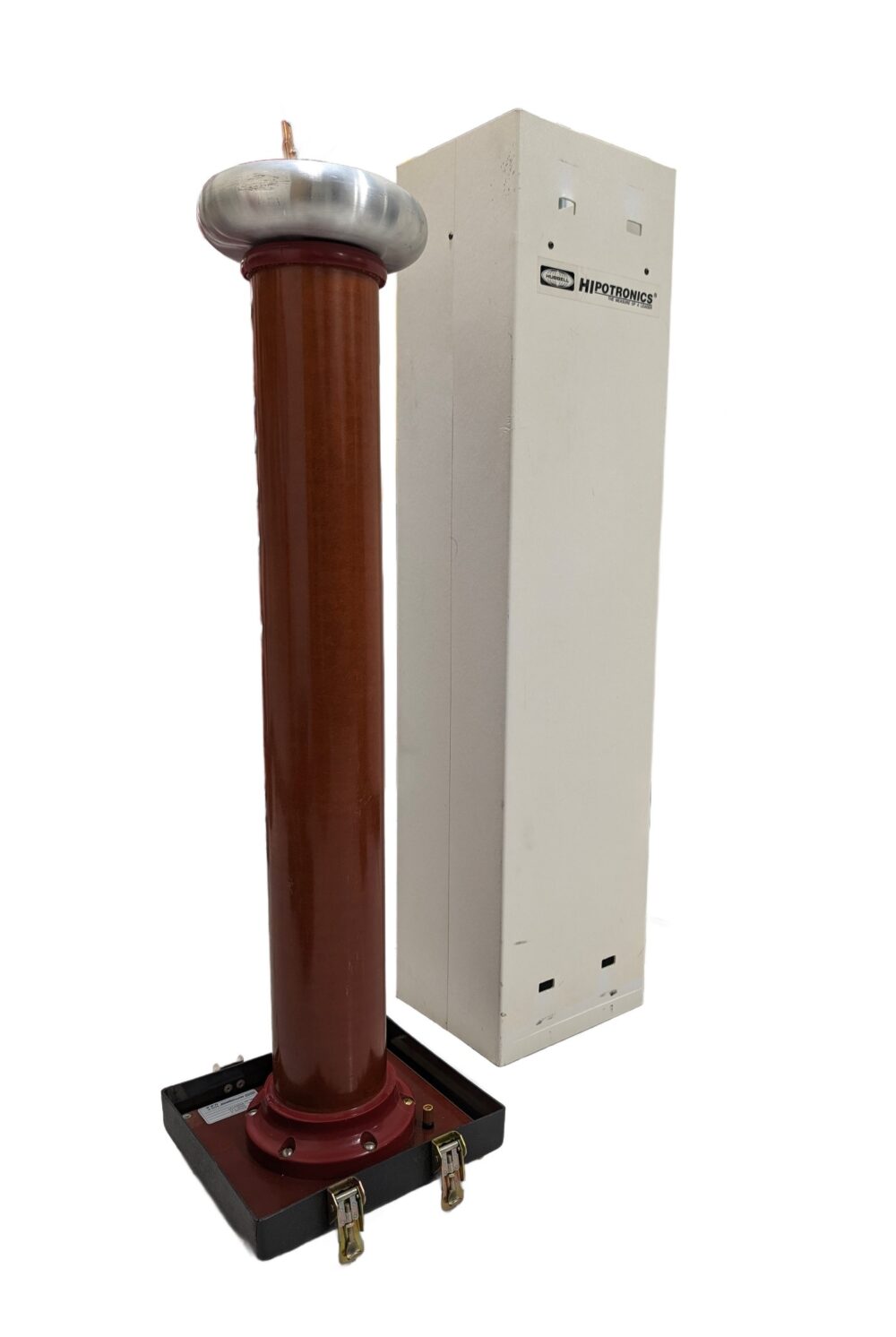

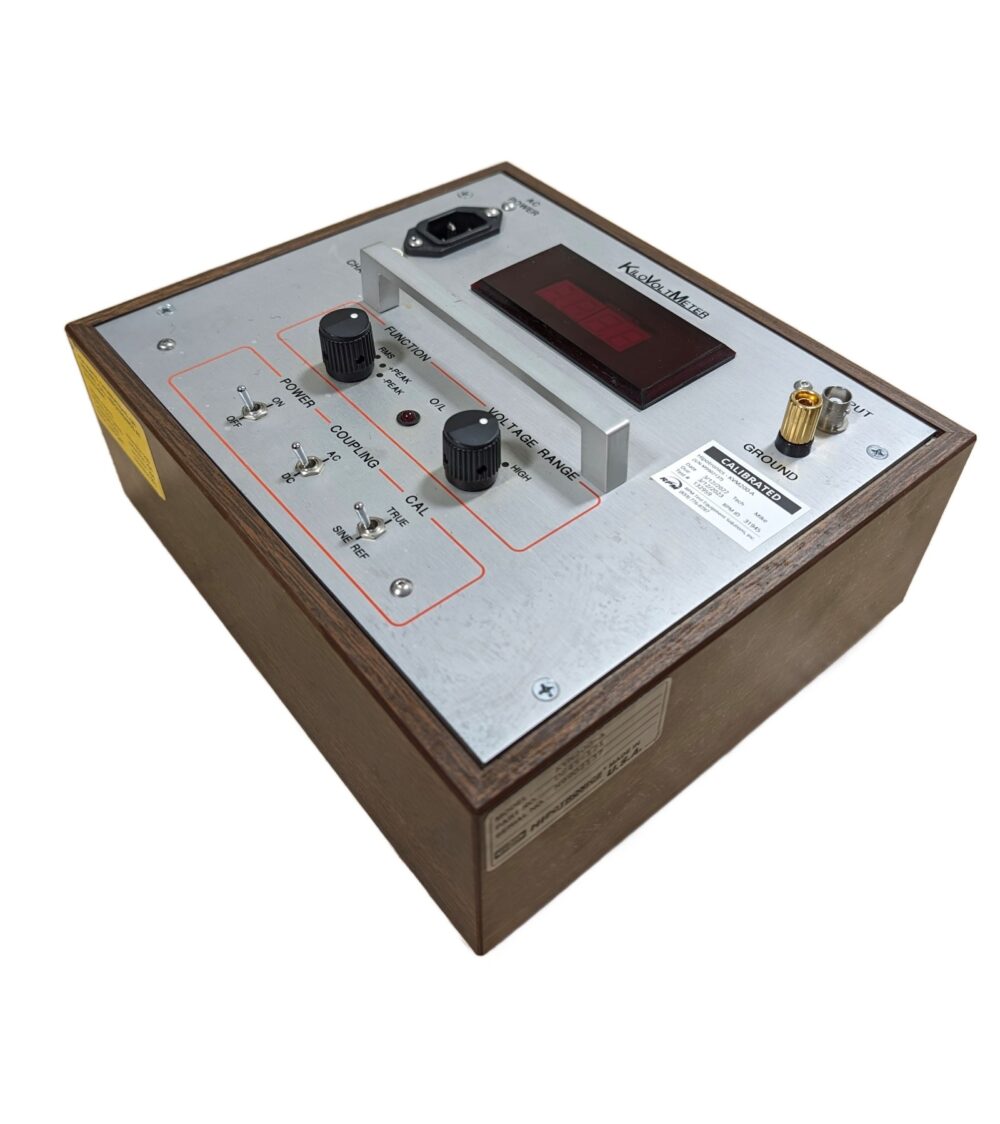

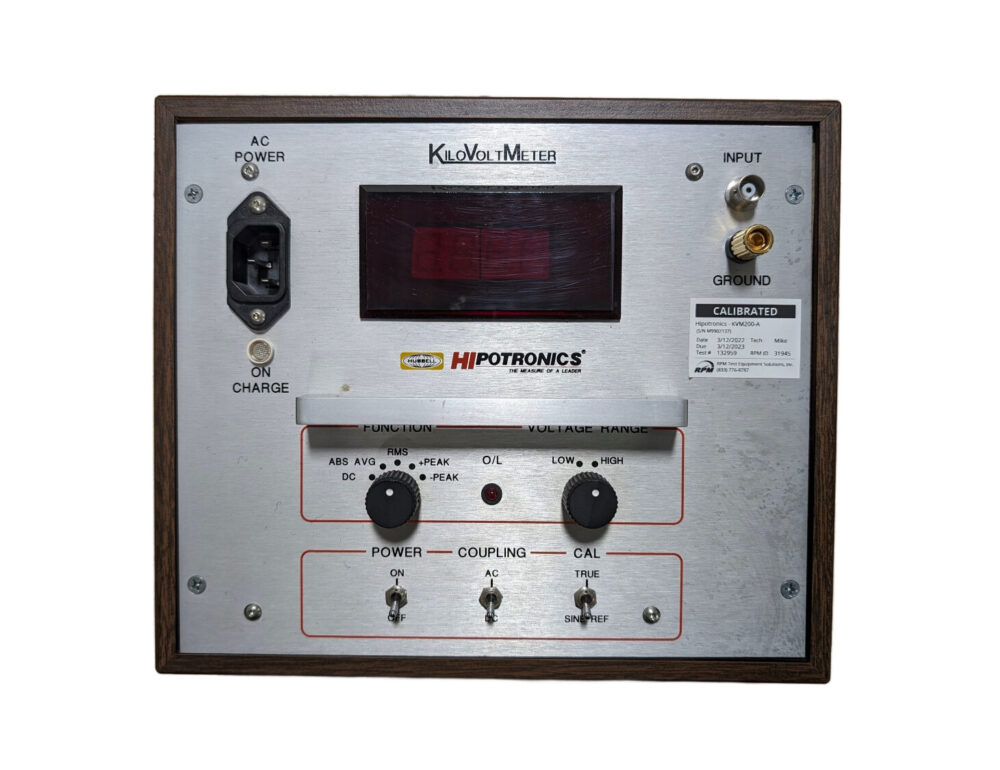

The Hipotronics KVM200 is a high-voltage divider used to measure AC and DC voltages up to 200 kV. It’s a crucial component in high-voltage testing and calibration, allowing technicians to safely and accurately measure these high voltages.
Here’s a breakdown of its key features and specifications:
Features:
Specifications:
Applications:
Benefits:
Resources:
Features:
- High Accuracy: Offers precise voltage measurement with low temperature and voltage coefficients.
- Wide Range: Measures both AC and DC voltages up to 200 kV.
- Portable and Rugged: Designed for field use with a lightweight and durable construction.
- Versatile: Can be used with various measuring devices like oscilloscopes and other meters.
- Safety: Reduces high voltage to a safe level for measurement.
Specifications:
- Voltage Ratio: 2000:1 (meaning it reduces the input voltage by a factor of 2000 for safe measurement)
- Maximum Voltage Rating:
- DC: 200 kV
- AC (RMS): 200 kV
- AC (Peak): 283 kV
- Accuracy:
- DC: < 0.5% of full scale (from 10-100% of scale)
- AC (RMS): < 1.0% of full scale (from 10-100% of scale)
- Dimensions:
- Total Height: 38 inches
- Top Electrode Diameter: 3 inches x 8 inches
- Weight: 28 lbs.
Applications:
- Testing and Calibration: Used in testing and calibrating AC/DC hipot testers, high-voltage power supplies, and other high-voltage equipment.
- Measurement: Provides accurate voltage measurement in various high-voltage applications.
Benefits:
- Safety: Allows for safe measurement of high voltages.
- Accuracy: Offers precise voltage readings for reliable testing and calibration.
- Portability: Enables convenient field testing and measurement.
- Versatility: Compatible with various measuring instruments.
Resources:
KVM Series ⇓
