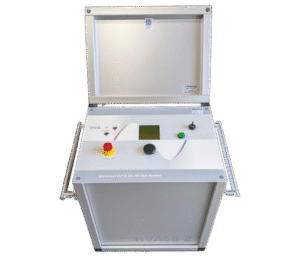

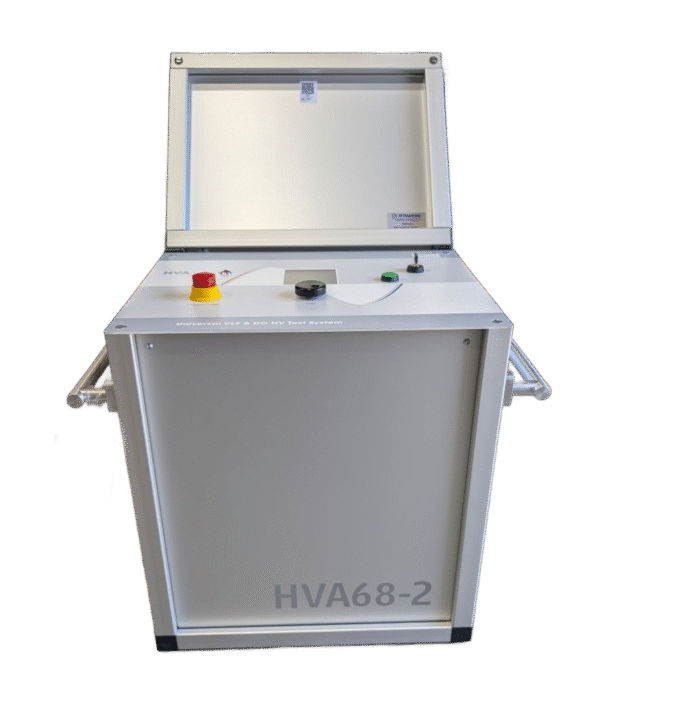

The HVA68-2 VLF/DC Hipot Tester a turbocharged HVA60 with double the output power capacity!
For customers that want to maintain optimum output frequency with pure undistorted sinewave when testing extremely long cables or complex cable networks, the HVA68-2 model is the unit of choice.
The HVA68-2 model delivers twice the power with identical size, weight, and footprint as the ever popular HVA60. This market-leading high voltage test instrument has the same familiar HVA user interface and standard HV cables, connectors, etc.
Test reports are downloaded to the instrument’s internal memory or to a USB flash drive. As with all HVA units, you get fully automatic test sequences, accurate digital RMS metering, and integrated storage of test results that can be viewed with freely available HVA Control Center Software.
- Test your 35kV & below rated MV cable systems.
- Single Piece Design
- Weighs only 126 lbs / 57kg
- Perform tests fully automatically
- Real time oscilloscope display
- Insulation Resistance & Cap. measurement
- RMS Metering of Current and Voltage
- Output Frequency optimization
- Internal Storage of Test Reports
- Download to PC and / or USB flash drive
- Unlimited duty cycle

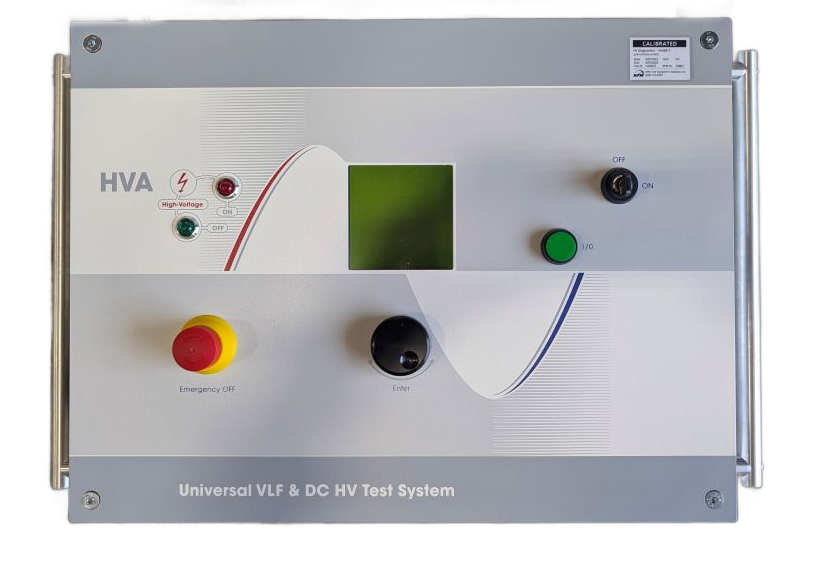

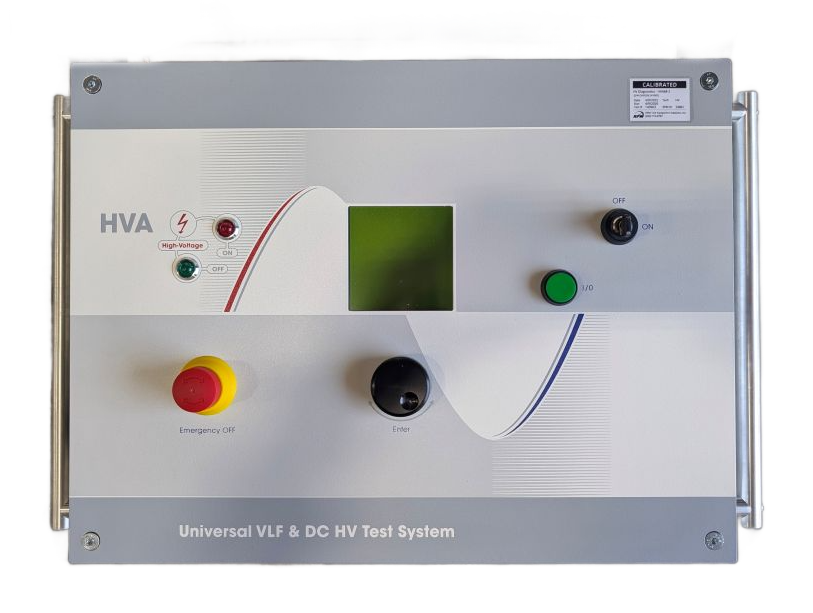

- Bright backlit LCD display
- Power supply immunity and independence
- Low maintenance, oil-free design
- HVA Control Center – User friendly software for immediate, professional detailed reporting and setup
- Output Voltage:
- VLF (Sinusoidal): 0 – 48 kVrms (0 – 68 kVpeak)
- DC: ± 0 – 65 kV
- VLF (Square Wave): 0 – 60 kV
- Sheath Test: 0 – 10 kV (negative polarity)
- Maximum Output Load:
- 2.0 µF @ 44 kVrms @ 0.1 Hz
- 1.7 µF @ 48 kVrms @ 0.1 Hz
- Output Current (AC): 56 mA rms max.
- Output Current (DC): 88 mA max.
- Frequency Range: 0.01 Hz to 0.1 Hz (adjustable in 0.01 Hz increments)
- Voltage Setting Resolution: 0.1 kV
- Current Measurement Resolution: 1 µA
- Capacitance Measurement Range: 0.1 nF to 30 µF
- Resistance Measurement Range: 0.1 MΩ to 20 GΩ
- Memory: Stores up to 50 test records and 40 test sequences internally. Unlimited storage via USB flash drive.
- PC Interface: USB Type A, RS232
- Storage Temperature: -25°C to +70°C (-13°F to 158°F)
- Humidity: 85% RH non-condensing
- Dimensions: 450 x 340 x 520 mm (17.7 x 13.4 x 20.5 inches)
- Weight: 57 kg (126 lbs)
