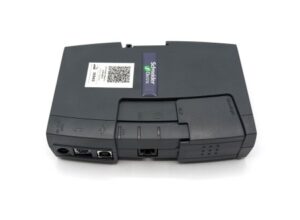

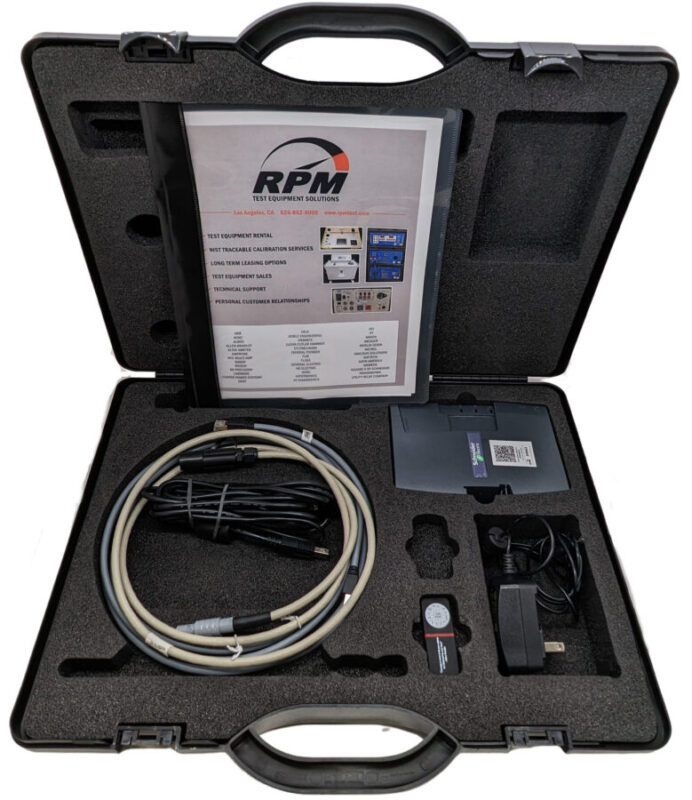

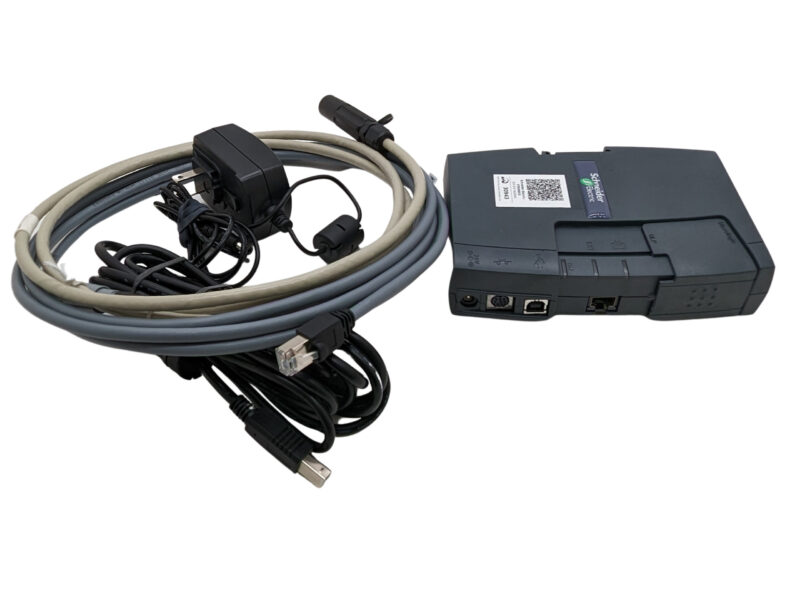

The Schneider Electric STRV00910 is a UTA (Uninterrupted Trip Analyser) test set for PowerPact H/J/L circuit breakers with Micrologic trip units.
Trip Units:
Testing:
Features:
Resources:
Trip Units:
The Schneider Electric STRV00910 UTA Tester is used to test the following types of trip units:
- MicroLogic 3.2
- MicroLogic 3.2S
- MicroLogic 5.2A
- MicroLogic 6.2A
- MicroLogic 5.2E
- MicroLogic 6.2E
These trip units are used in Schneider Electric PowerPact H, J, and L electronic circuit breakers.
Testing:
It can be used to test the following functions of the circuit breaker:
- Overcurrent
- Undervoltage
- Overtemperature
- Earth fault
- Phase sequence
- Trip curve
- Trip time
Features:
Here are some of the features of the Schneider Electric STRV00910:
- Portable and easy to use
- Built-in display for test results
- Can be connected to a PC for data logging and analysis
- Test functions: overcurrent, undervoltage, overtemperature, earth fault, phase sequence, trip curve, trip time
- Reliable and accurate
- Designed for use with PowerPact H/J/L circuit breakers with Micrologic trip units
