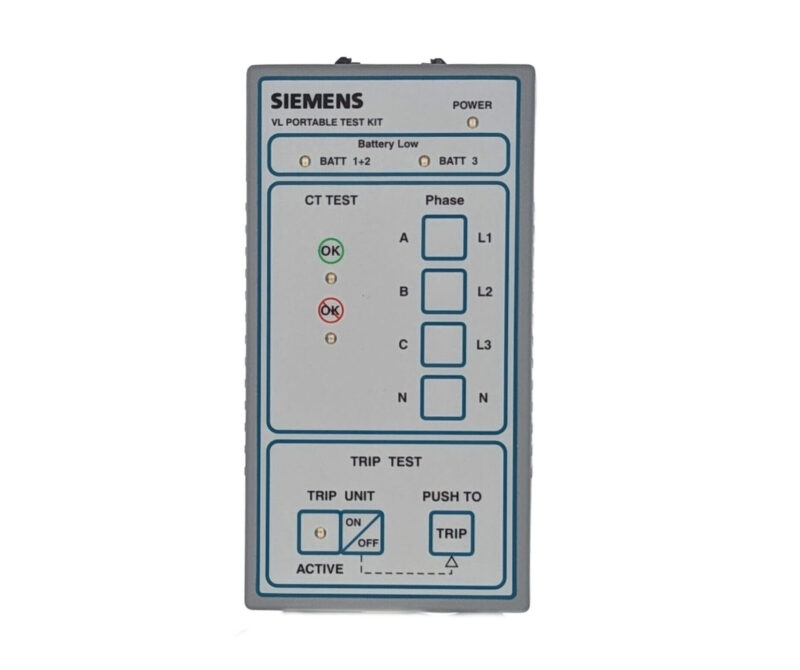

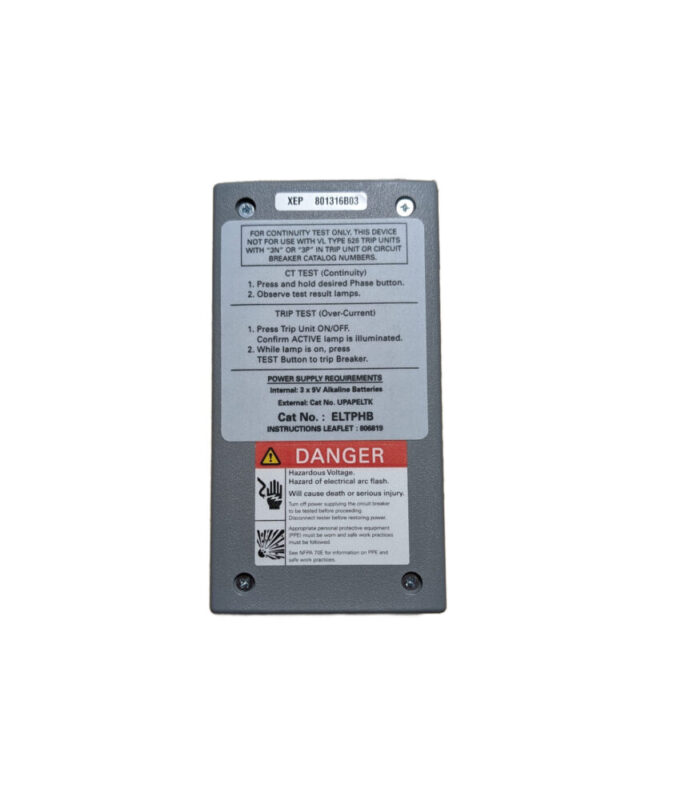

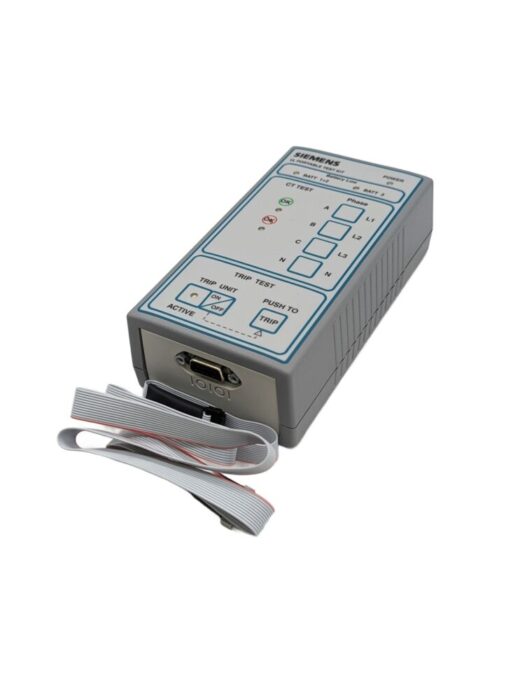

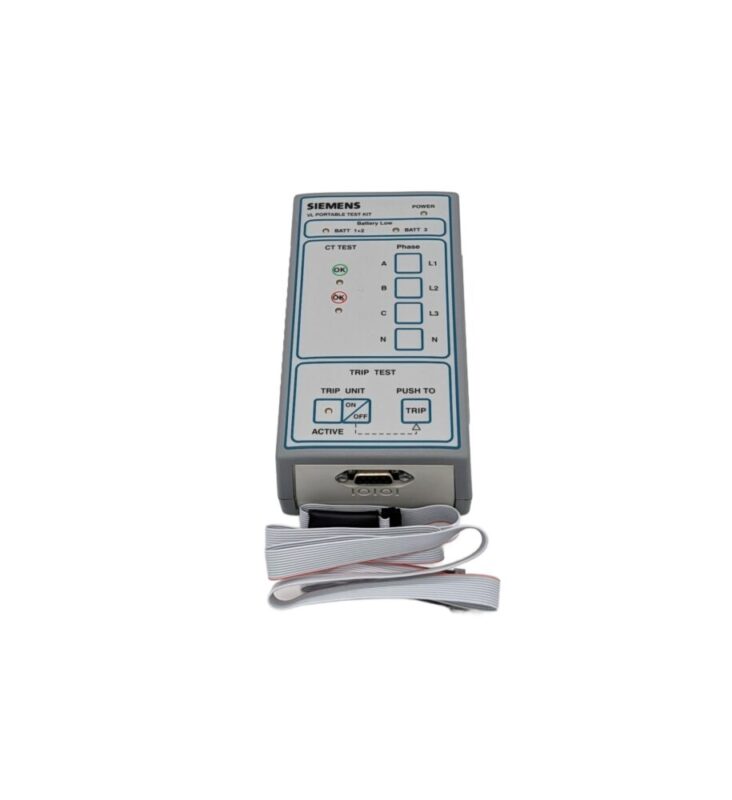

The Siemens ELTPHB is a portable test kit that is used to power, program, trip test, and check CTs for Electronic Trip Units (ETUs) on Siemens VL Breakers. It also has a port for local communications of current flow and trip settings.
The Siemens ELTPHB is specifically designed to test Electronic Trip Units (ETUs) on Siemens VL breakers.
These ETUs are microprocessor-based devices that monitor various electrical parameters and trip the breaker in case of overload, short circuit, or other fault conditions.
Functions:
Features:
Benefits:
Resources:
Functions:
The ELTPHB allows you to perform several functions on these ETUs, including:
- Programming: Setting various trip settings and parameters on the ETU.
- Trip Testing: Simulating overload and short circuit conditions to verify proper tripping functionality of the ETU.
- Current Transformer (CT) Verification: Checking the accuracy of the CTs connected to the ETU.
- Local Communication: (with additional accessories) This allows for data exchange on current flow and trip settings with the ETU.
Features:
- Powers, programs, trip tests, and checks CTs for ETUs on Siemens VL Breakers
- Has a port for local communications of current flow and trip settings
- Easy to use and portable
Benefits:
- Ensures the safe and reliable operation of Siemens VL Breakers
- Reduces downtime and maintenance costs
- Improves safety
