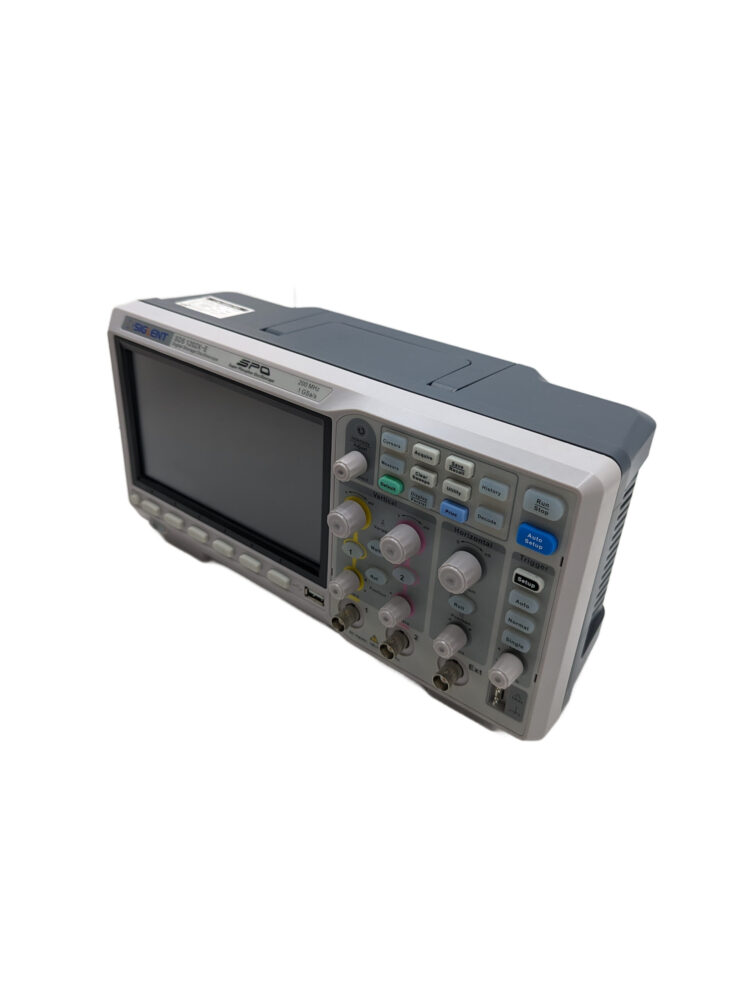

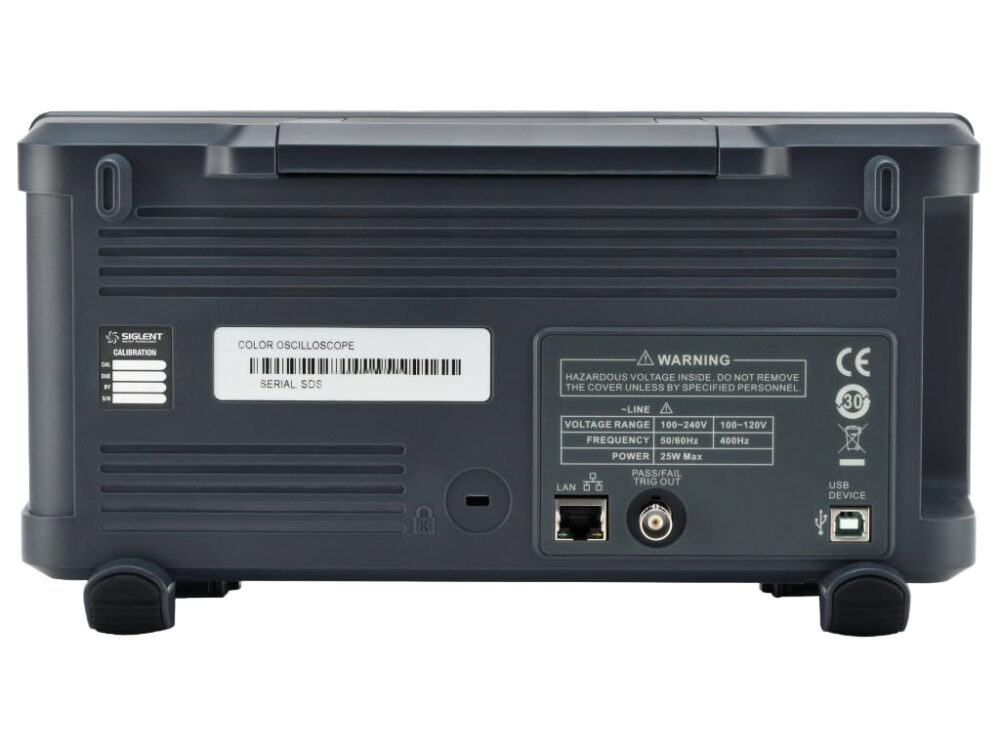

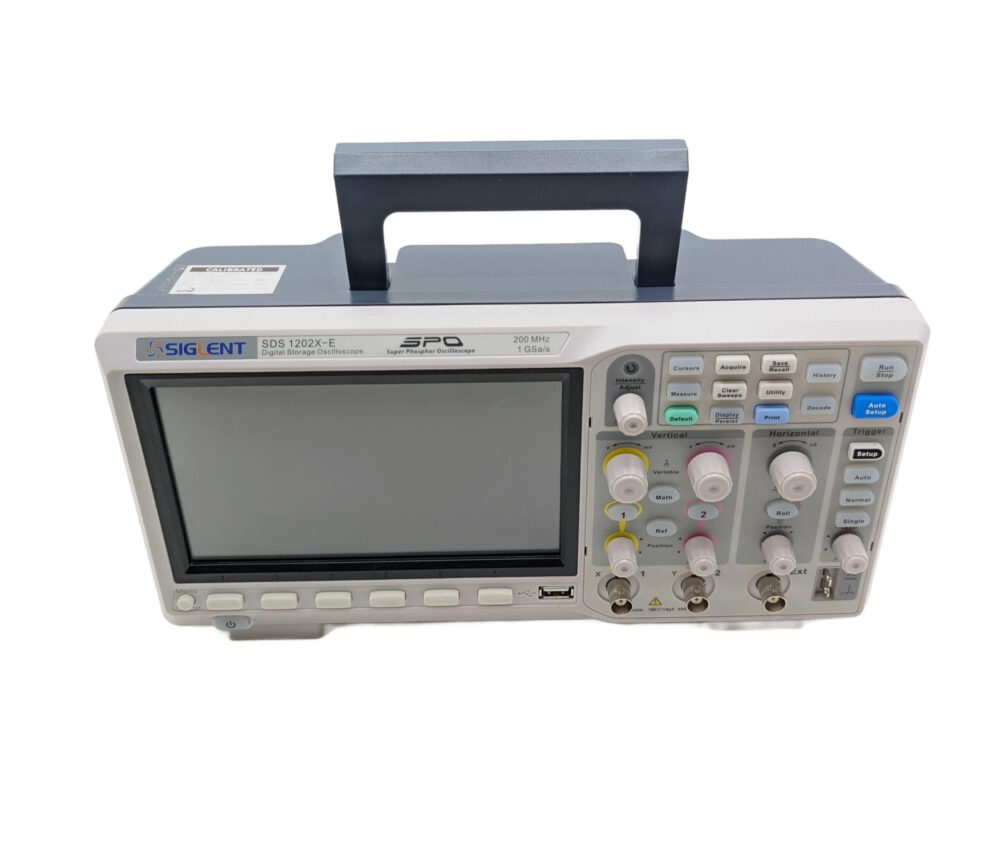

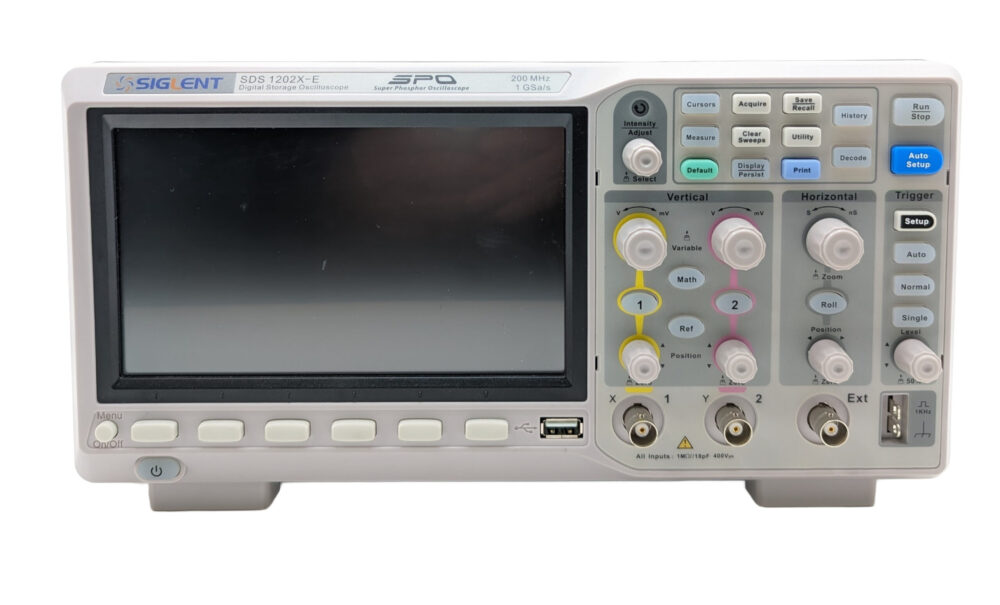

The Siglent SDS1202X-E is a 200MHz digital oscilloscope with a maximum sample rate of 1 GSa/s and a standard record length of 14 Mpts. It has a large 7-inch TFT-LCD display with 800 * 480 resolution.
Features:
SDS1202X-E
Applications:
Benefits:
Resources:
Features:
- Serial bus triggering and decoding (standard)
- History waveform recording and sequential triggering
- 1M points FFT math function
- Math co-processor for fast front panel operation
- Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
- Low background noise and 500 μV / div to 10 V / div voltage scales
SDS1202X-E
The SDS1202X-E employs a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. It also features a variety of advanced features, such as:
Applications:
The SDS1202X-E is a versatile and powerful oscilloscope that is ideal for a wide range of applications, including:
- Electronics design and development
- Troubleshooting and repair
- Education and research
Benefits:
- Excellent signal fidelity and performance
- Wide range of features and capabilities
- Easy to use
- Affordable price
