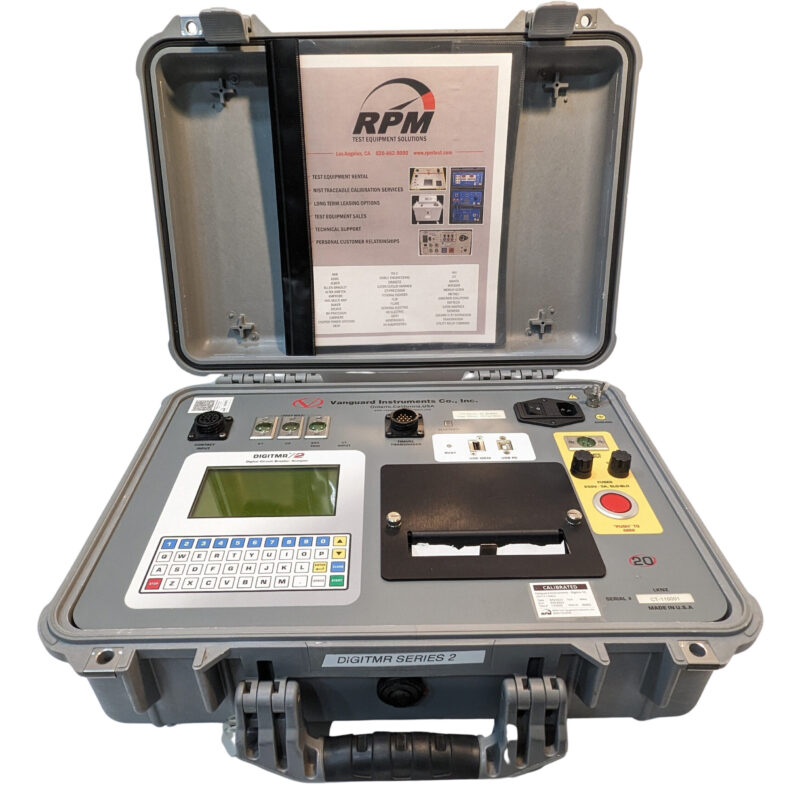

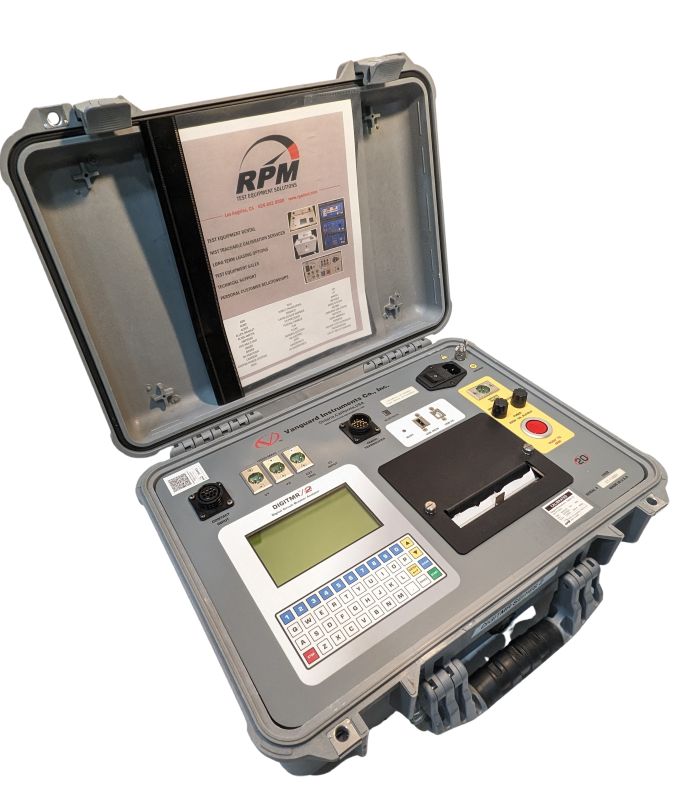

The Vanguard Instruments DigiTMR S2 is a digital circuit breaker analyzer that is designed to measure the performance of high-voltage circuit breakers. It can measure the main contact and resistor contact time, stroke, velocity, over-travel, bounce back, and contact wipes. It can also be used to measure the motion of the circuit breaker by connecting it to a resistor-type transducer.

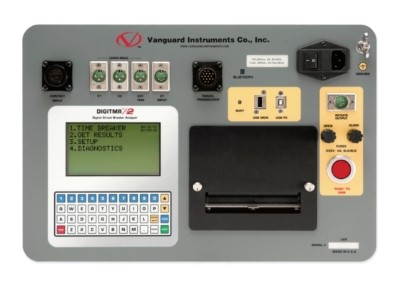

The DigiTMR S2 is a portable unit that weighs 12 pounds. It has a large LCD display that shows the test results, as well as other information such as the timing window, test plan, and battery status. The DigiTMR S2 can store up to 200 test records, which can be easily exported to a USB flash drive or printed on a built-in thermal printer.
Features:
Applications:
Resources:
Features:
- Digital circuit breaker analyzer
- Measures main contact and resistor contact time, stroke, velocity, over-travel, bounce back, and contact wipes
- Can measure the motion of the circuit breaker by connecting it to a resistor-type transducer
- Portable
- Large LCD display
- Stores up to 200 test records
- USB connectivity
- Built-in thermal printer
- CE, UL, and CSA certified
Applications:
- Testing the performance of high-voltage circuit breakers
- Analyzing the motion of circuit breakers
- Investigating circuit breaker failures
- Troubleshooting circuit breaker problems
