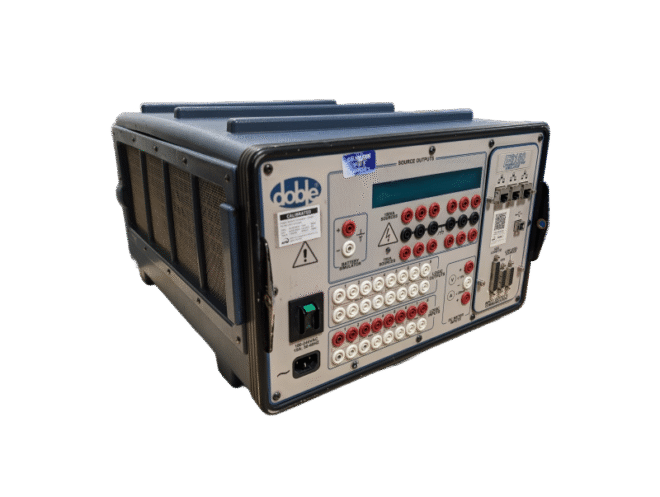

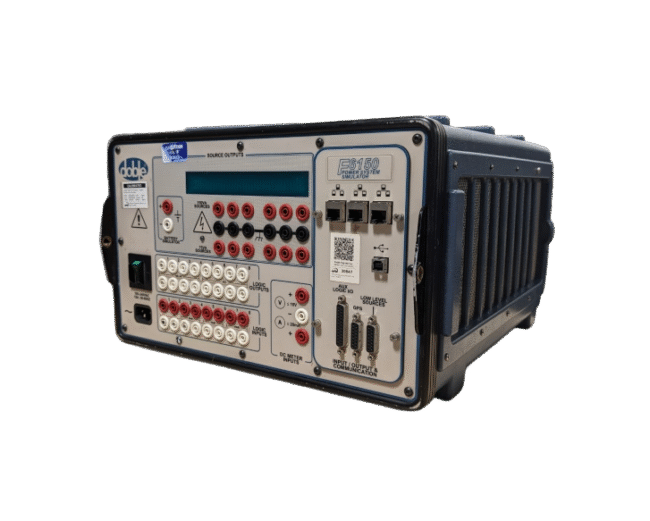

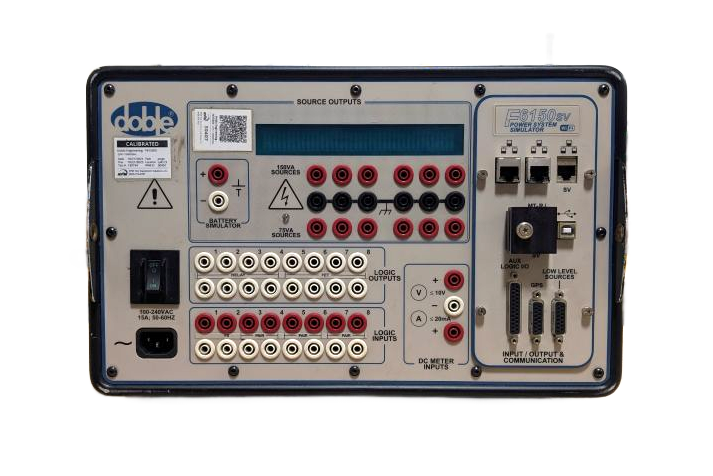

The Doble F6150sv is a versatile power system simulator for testing IEC 61850-based protection devices and schemes. It can perform the simplest through the most complex tests, and it has the highest output current of any test set on the market.
- Versatile and powerful
- Easy to use and provides accurate results
- Can test a wide range of protection devices and schemes
- Available in different configurations to meet all your testing and budgetary needs
The Doble F6150sv is a valuable tool for anyone who needs to test and maintain protection systems.
- Analog testing of 1A and 5A protection devices
- Performs state simulation and transient testing
- Tests 0.2-class metering CTs and transducers
- Implements end-to-end testing of communications-based schemes with GPS time syncing
- Maximum of 12 sources (six voltage, six current) configurable for bench testing and proof-of-concept testing for complicated relaying schemes
- Delivers full VA power with resistive, inductive and capacitive loads at maximum current rating (6 x 35, 3 x 70, 1 x 210A)
