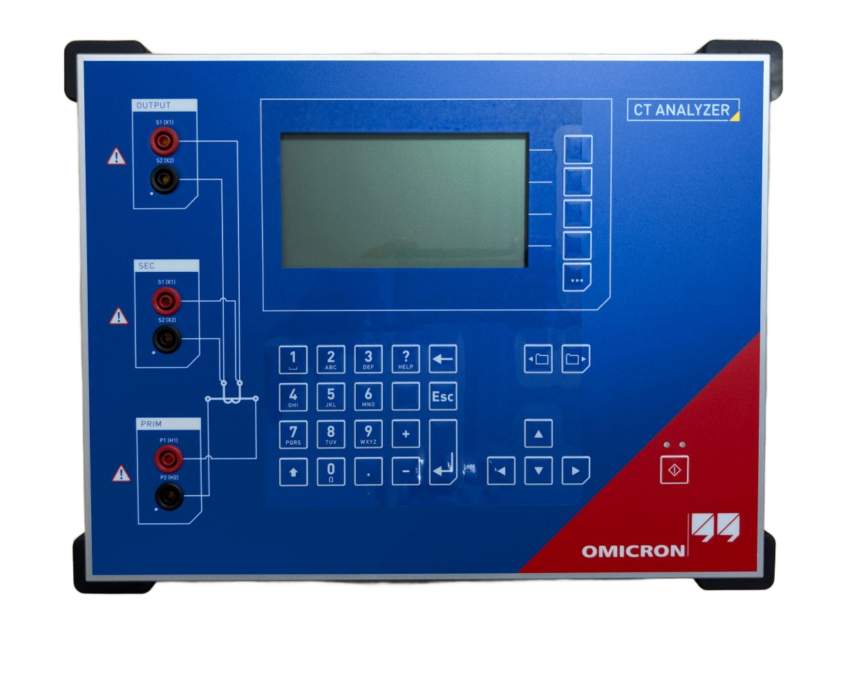

The OMICRON CT Analyzer Current Transformer Tester automatically determines all relevant current transformer values and compares the results with the selected standard. The OMICRON CT Analyzer is complies with the o IEC 60044-1, IEC 61869-2, and IEEE C57.13 (up to accuracy class ≥ 0.3). The unit guarantees 0.05% current accuracy at the ratio between 1 to 2000 and 3 minutes phase displacement accuracy (1 min when calibrating on site).
The CT Analyzer Current Transformer Tester allows all types of single and multi-ratio current transformers to be tested on-site. Manufacturers of current transformers, high voltage transformers, and switchgear also use the CT Analyzer for tests during development and production. The OMICRON CT Analyzer can be paired with the CT SB2 switch box available as an accessory for automated testing.
- Injects low test signals into secondary side of the CT
- Determines the CT‘s equivalent circuit parameters
- Identifies all relevant CT performance parameters
- Displays all relevant parameters of the CT and its accuracy at different currents and burdens
- Evaluates the CT according to the selected standard
- Determines unknown CT nameplate parameters
- Demagnetizes the CT after the test.
- Ratio and phase accuracy
- Winding resistance
- Excitation characteristics (knee points)
- Composite error (ALF, ALFi, FS, FSi, Vb)
- Burden impedance
- Transient CT classes and parameters (TPS, TPX, TPY and TPZ type CTs)
- Transient dimensioning factor (Ktd)
- If missing/unknown: CT type, class, ratio, knee point, power factor, nominal burden, operating burden, primary and secondary winding resistance
- Remanence and residual magnetism
- Highest measurement accuracy: 0.02 % / 1 min when calibrating on site
- Very small and lightweight (< 8 kg / 17.4 lbs), easy to transport for on-site testing
- Automatic evaluation according to IEC, IEEE and to customized or local/national standards
- Short commissioning times (duration of the automatic test < 1min)
- Excellent workplace safety – Tests run at max. 120 V
- Integration into testing routines using Remote Interface Control
- Testing CTs in substations, power plants, and industrial settings.
- Commissioning and maintenance of electrical power systems.
- Manufacturing and quality control of CTs.
