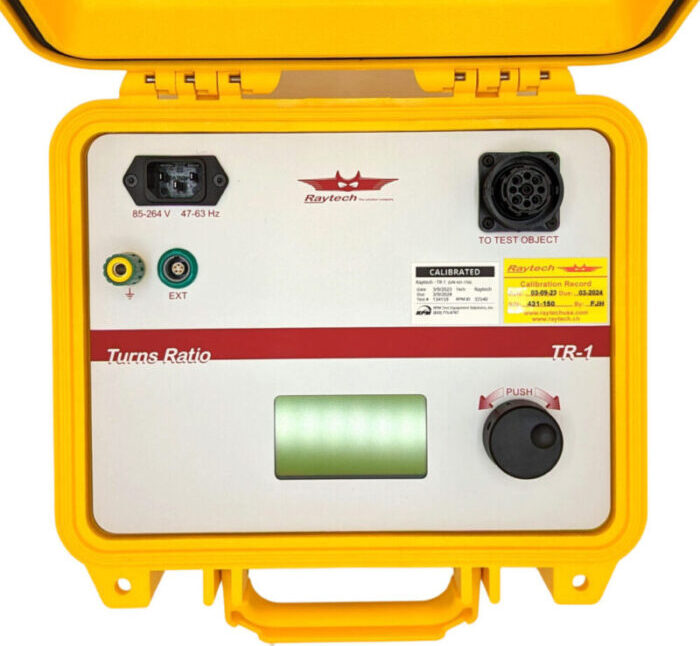

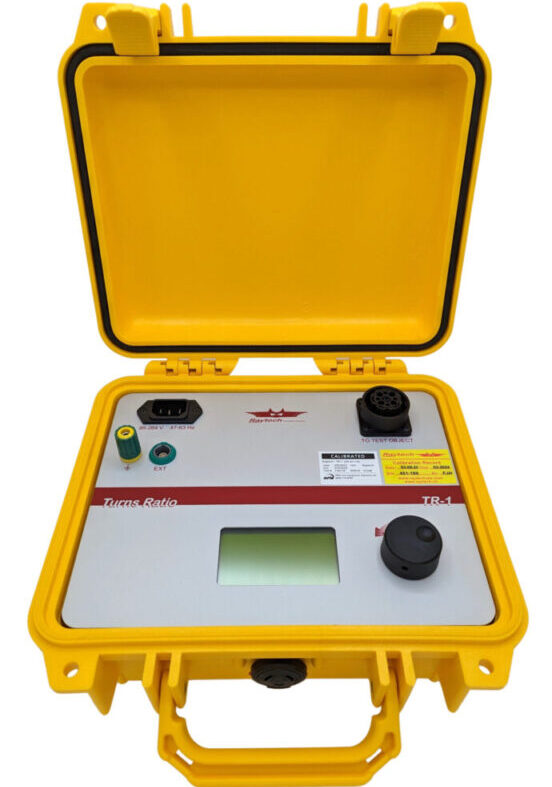

The Raytech TR-1 is a single-phase transformer turns ratio meter. It is a fully automatic, microprocessor-based instrument that can test ratios up to 4000:1. The TR-1 is designed for highly accurate readings on-site with laboratory precision. It is a lightweight system that comes complete in its own rugged waterproof field case.
The TR-1 has a number of features, including:
Key Features:
Specifications:
Applications:
Accessories:
Resources:
Key Features:
- Fully automatic operation: The TR-1 automatically applies a preset test voltage to the high winding side of the transformer and measures back through the low side of the transformer. The results are displayed on the easy-to-read liquid crystal display.
- High accuracy: The TR-1 has a high degree of accuracy and can test ratios up to 4000:1.
- Rugged construction: The TR-1 is housed in a rugged, lightweight, waterproof case.
- Battery operated: The TR-1 is battery operated and can be recharged with line voltage or an optional DC car adapter.
- Reverse polarity protection: The TR-1 has reverse polarity protection to prevent damage to the instrument.
- Continuity test: The TR-1 can also be used to perform a continuity test on a transformer.
- Test current up to 1 A for CT testing: The TR-1 can be used to test current transformers by providing a test current up to 1 A.
- Internal storage of the last 50 test results: The TR-1 can store the last 50 test results for later retrieval.
- RS-232 interface: The TR-1 has an RS-232 interface that can be used to connect the instrument to a computer for data logging or analysis.
Specifications:
- Size L: 270 mm (10.62″) W: 245 mm (9.68″) H: 125 mm (4.87″)
- Weight: 3.2 kg (7.1 lbs.)
- Lithium Ion Battery 14.4V / 2.15 Ah
- Input Power: 85 to 264 VAC, 47 … 63 Hz, 12 VDC (optional)
- Output Voltage PT Mode: 40 VAC, 10 VAC, 5 VAC, 1 VAC
- Output Voltage CT Mode: 1 … 5 VAC auto ranging
- Panel Display: LCD Graphic with backlight
- Front Panel: Sealed, anodized with a multi-actuation rotary knob
- Interface: RS-232 serial (with optional interface adapter)
- Memory Storage: Internally stores 50 test results
- Temperature: Operating: –10°C to 60°C (14ºF to 140ºF), Storage: –20°C to 70°C (-4ºF to 158ºF)
Applications:
The Raytech TR-1 is a versatile and accurate transformer turns ratio meter that can be used for a variety of applications, such as:
- Troubleshooting transformers
- Testing transformers for compliance with standards
- Calibrating other test equipment
- Designing new transformers
Accessories:

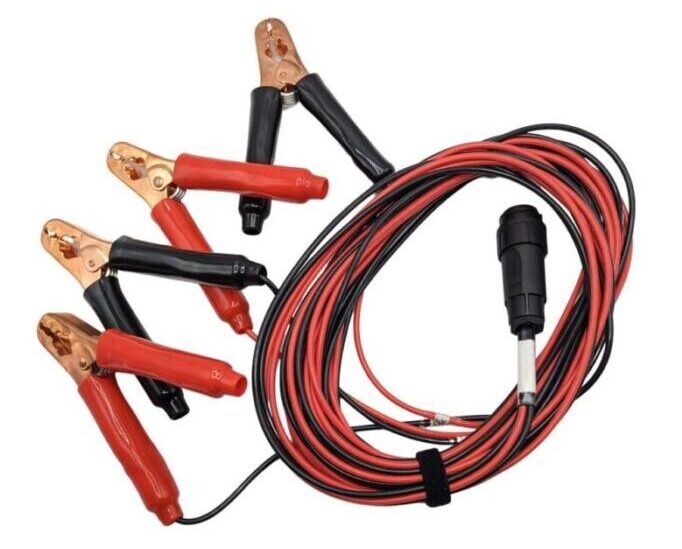

- 1011N-05008: H and X Lead Set – 5m (16ft.)
- 1011A-05013: Ground Lead – 5m (16ft.)
- 1011A-07001: Power Cord – 3m (10ft.)
- 1011A-03001: Cable Bag with Shoulder Strap
- 1003A-02001: Instruction Manual
- 1011X-10001: Certificate of Accuracy
