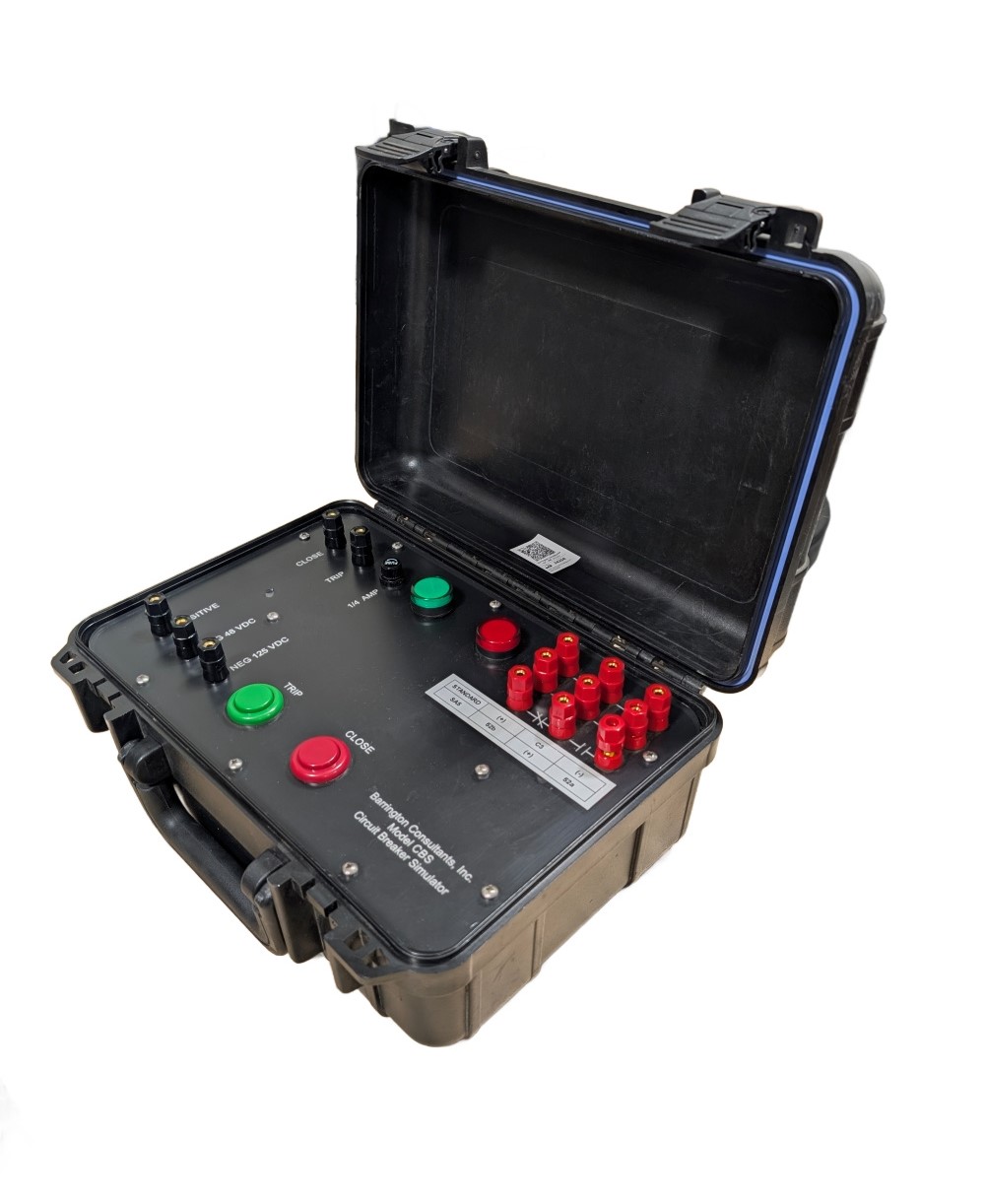

The Barrington Model CBS (Circuit Breaker Simulator) was designed to be a convenient, light weight alternative to operating high voltage circuit breakers while testing the operation of substation protection relays.

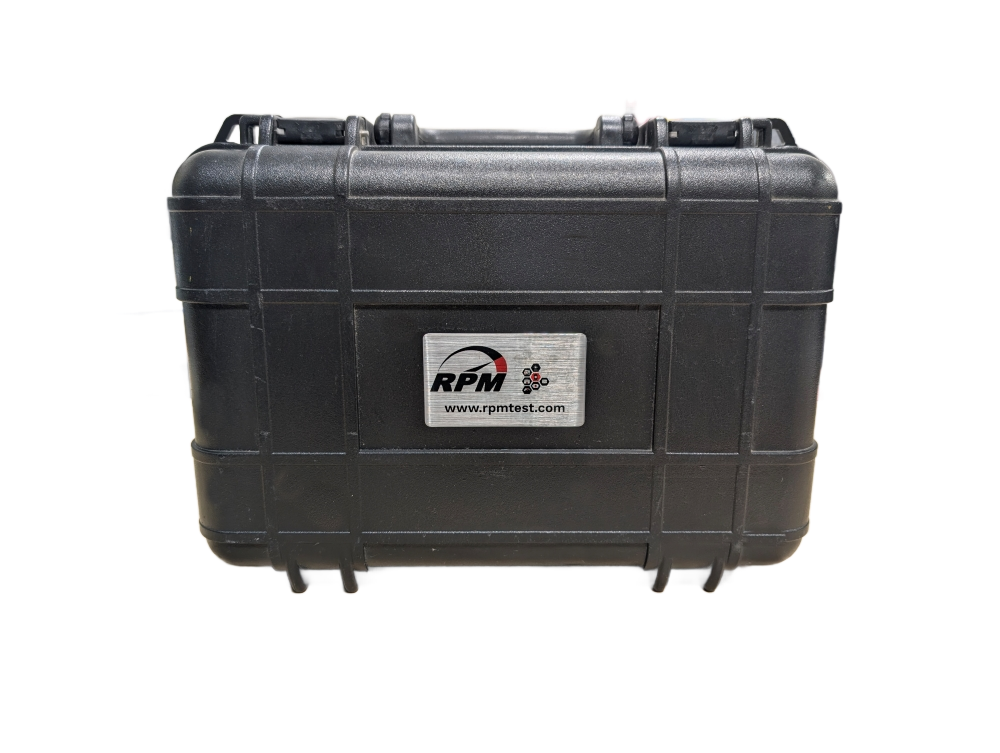

The Circuit Breaker Simulator has built-in protection against accidental reverse polarity or misapplied source voltages. Manual close and trip micro-switch push-buttons are provided for user convenience. Indicating pilot lamps are 100,000 hour rated super bright LEDs. A BIG package and it only weighs 8.5 lbs. Dimensions (in.) 14x 10 x 7
- Convenient
- Easy to Use
- Protected
- Light Weight
- Economical
- Quick Set-Up

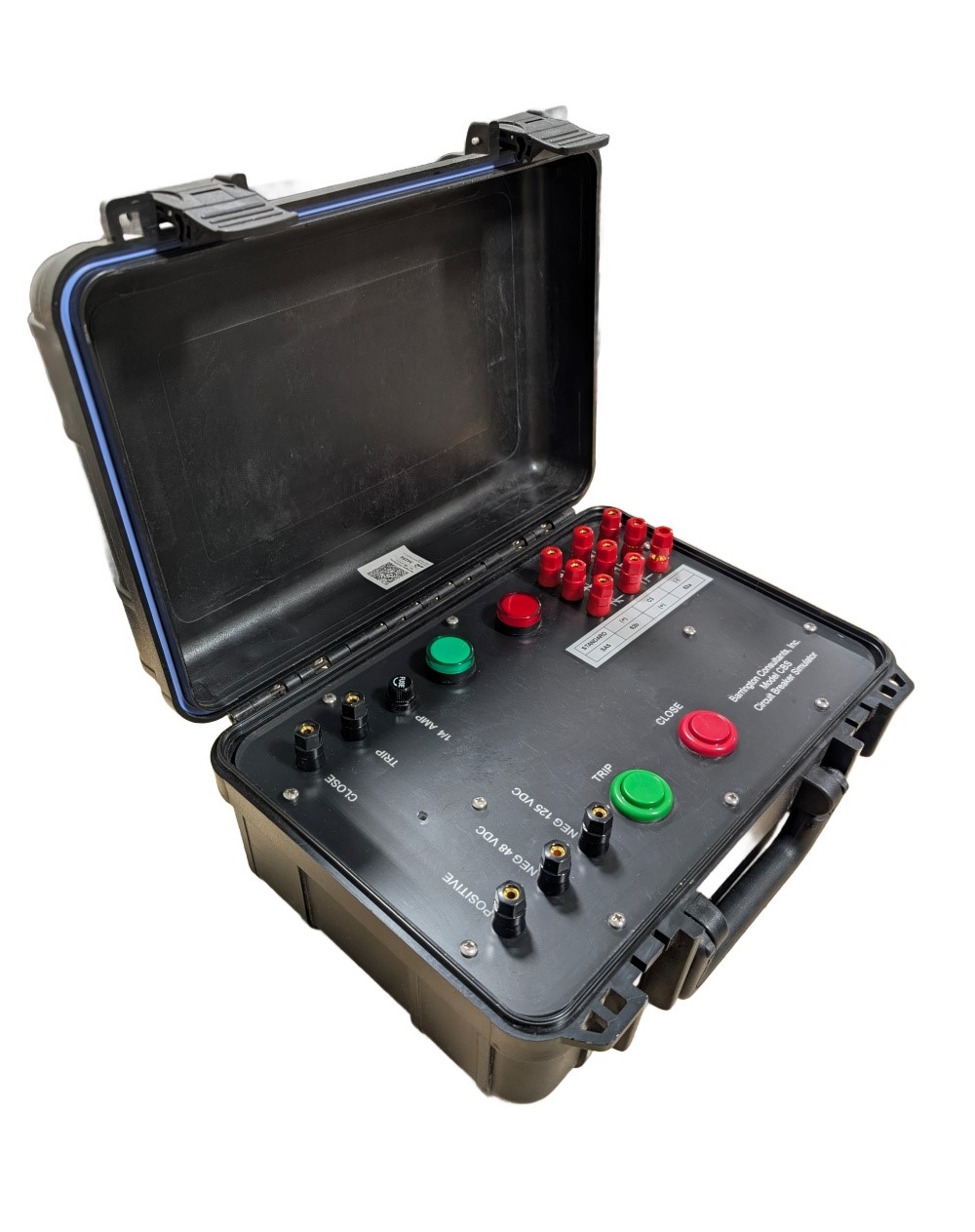

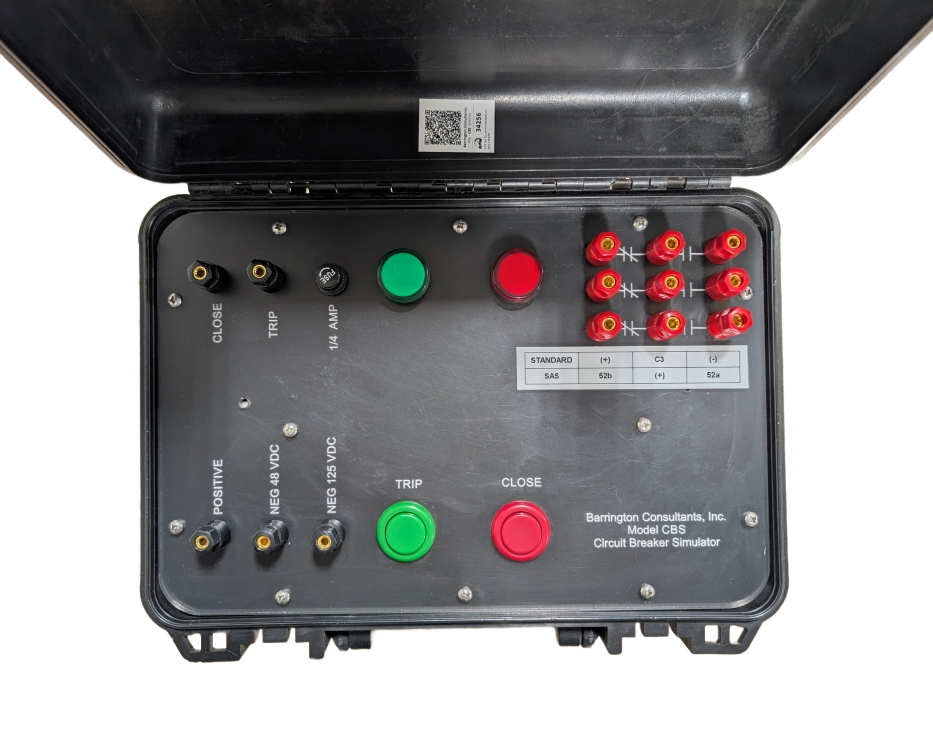

Use the CBS to prove the trip and close operations while doing routine and commission testing of protective relay operations. The Circuit Breaker Simulator operates on both 48VDC and 125VDC systems. Trip and Close connectors are provided for protective relay inputs. 6 Auxiliary contacts are provided for various test connections. 3 normally closed contacts and 3 normally open contacts are available.
