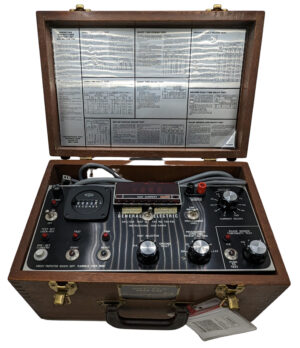

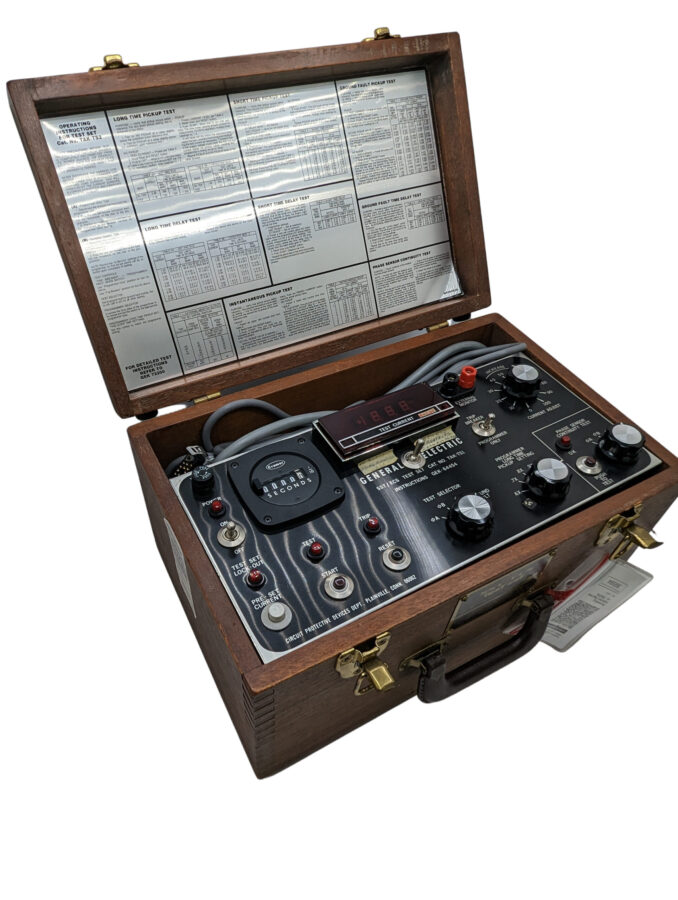

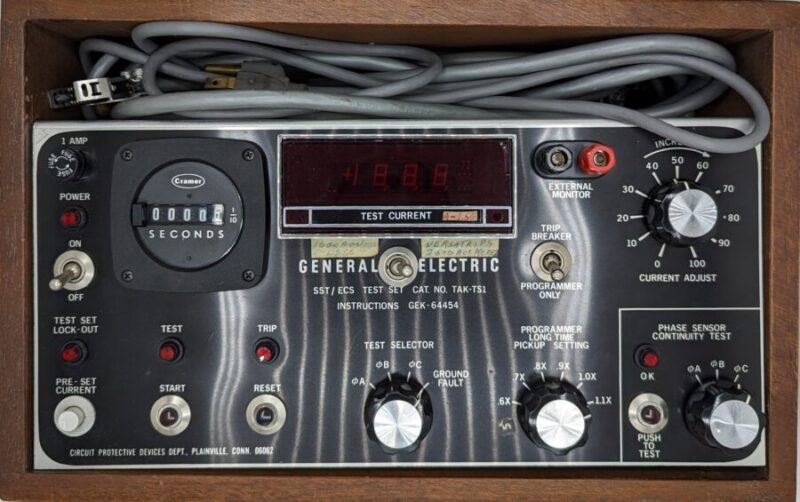

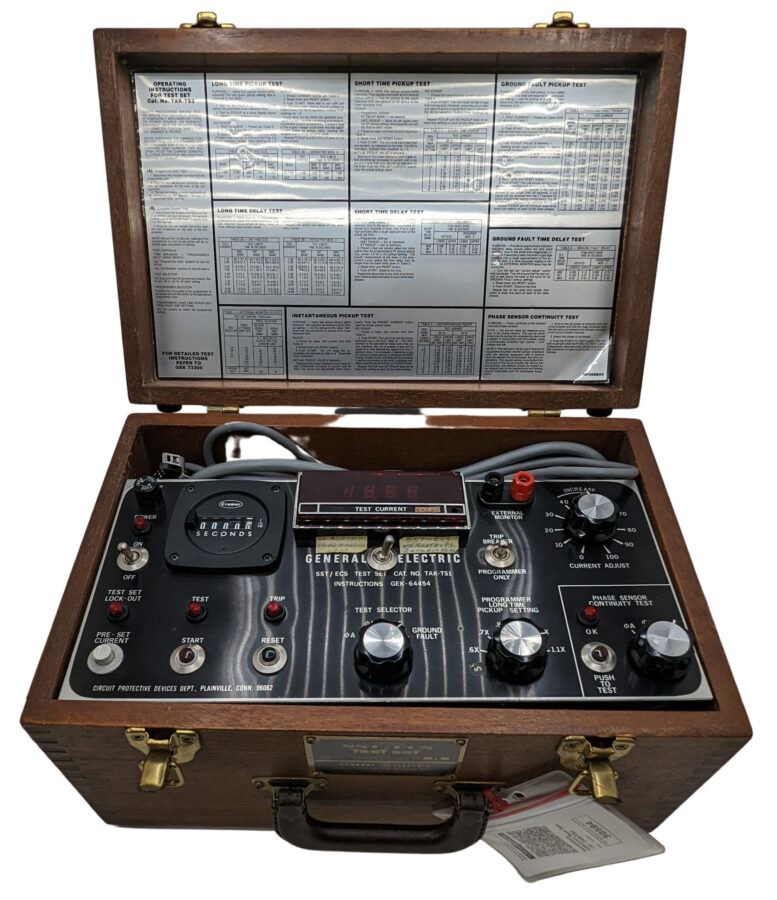

The GE Test Set TAK-TS1 is a secondary injection test set that is used to test the operation of solid-state trip devices used on Type AK, AT, and AH circuit breakers.
The TAK-TS1 is a safe and easy-to-use tool that can help to ensure the reliability of solid-state trip devices. It is a valuable tool for electricians and electrical engineers who need to test the operation of solid-state trip devices.
Breakers and Trip Units:
Features:
Specifications:
Resources:
Breakers and Trip Units:
GE Test Set TAK-TS1 is a portable test set that can be used to test the following types of breakers and trip units:
- SST (Solid-State Trip) breakers
- ECS (Electronic Circuit Sensor) breakers
- VersaTrip Mod 2 solid-state trip units
Features:
- Rugged, lightweight, and portable
- Can be used to test Versa Trip circuit breakers
- Can test overcurrent, undervoltage, ground-fault, thermal imaging, and self-restrain ZSI functions
- Safe and easy to use

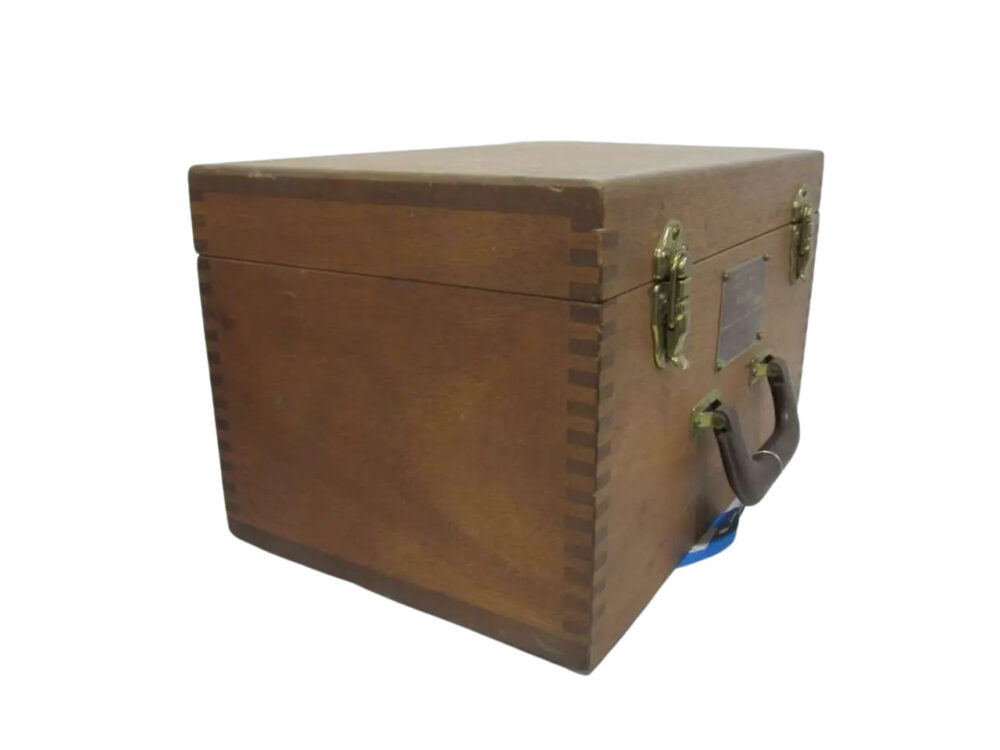

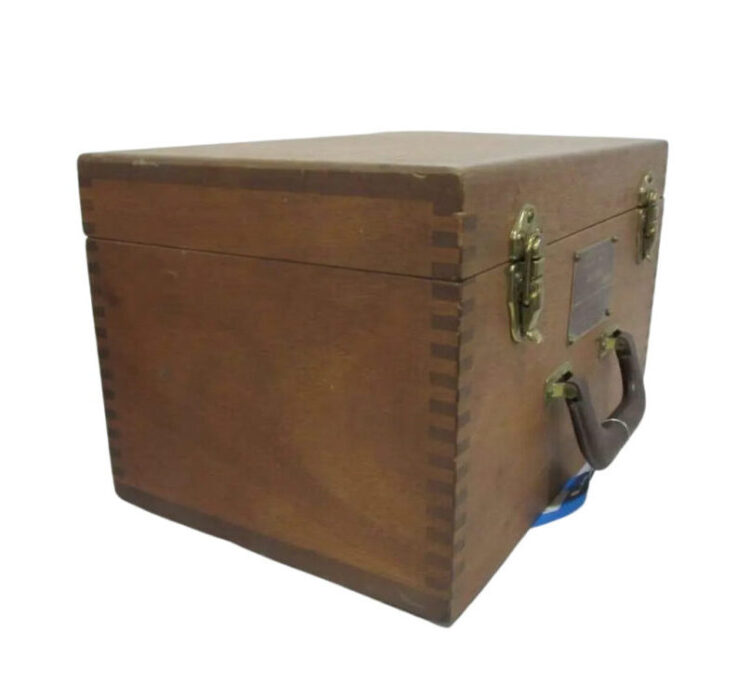

- Comes with a carrying case
Specifications:
- Input voltage: 120/240 VAC
- Output current: Up to 100 amps
- Output voltage: Up to 200 volts
- Accuracy: +/- 1%
- Dimensions: 12 x 8 x 4 inches
- Weight: 10 pounds
