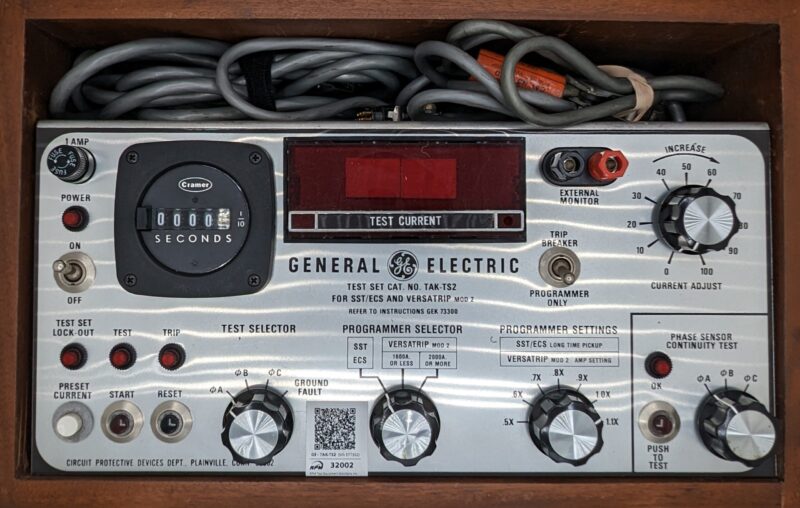

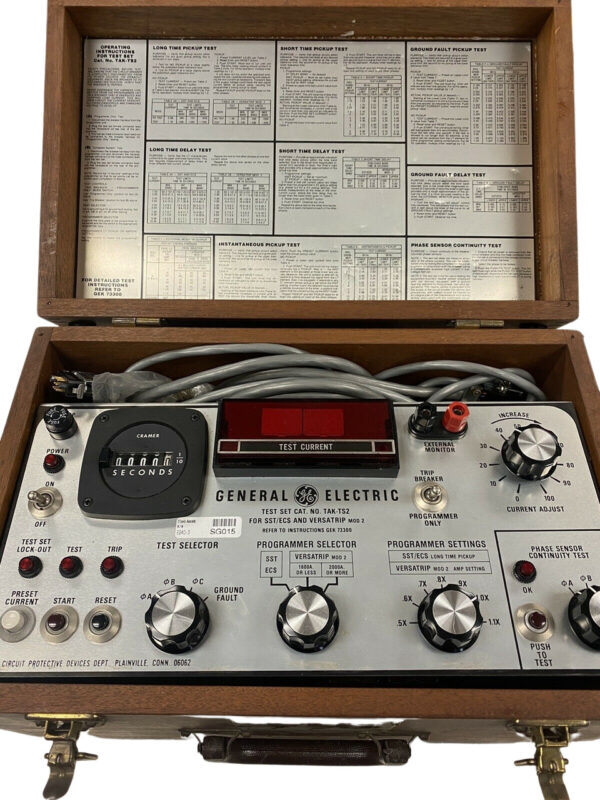

The GE Versa Trip TAK-TS2 is a secondary injection test set that is used to test the operation of Versa Trip circuit breakers.
To use the TAK-TS2, connect the test leads to the circuit breaker and then select the function that you want to test. The TAK-TS2 will then generate a current or voltage that will cause the circuit breaker to trip. If the circuit breaker trips, then the test is successful. If the circuit breaker does not trip, then the test has failed and the circuit breaker may need to be repaired or replaced
Breakers and Trip units:
Features:
Specifications:
Resources:
Breakers and Trip units:
The GE Test Set TAK-TS2 is used to test the following types of breakers and trip units:
- SST and ECS solid-state overcurrent trip devices used on AK and AKR low voltage power circuit breakers
- VersaTrip Mod 2 types used on molded case breakers and the insulated case Power-Break breakers
Features:
- Rugged, lightweight, and portable
- Can be used to test Versa Trip circuit breakers
- Can test overcurrent, undervoltage, ground-fault, thermal imaging, and self-restrain ZSI functions
- Safe and easy to use

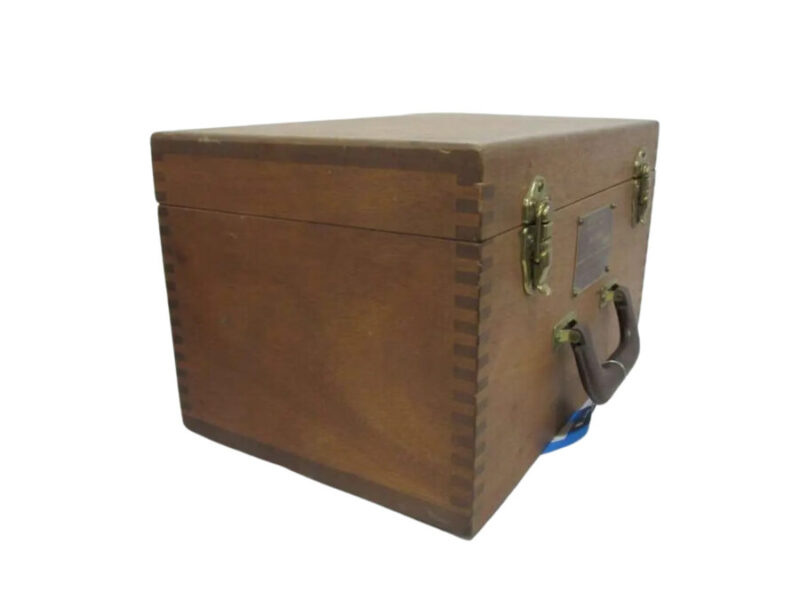

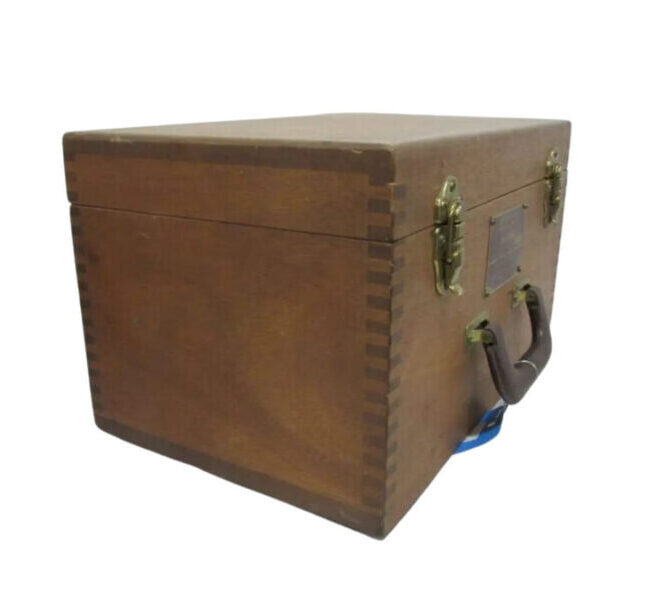

- Comes with a carrying case
Specifications:
- Input voltage: 120/240 VAC
- Output current: Up to 100 amps
- Output voltage: Up to 200 volts
- Accuracy: +/- 1%
- Dimensions: 12 x 8 x 4 inches
- Weight: 10 pounds
