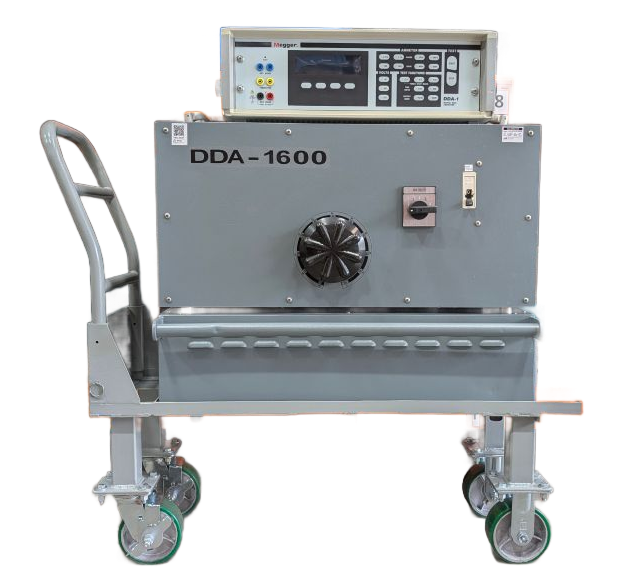

The Megger DDA-1600 is a portable, high-current circuit breaker test set. It is designed to test low-voltage circuit breakers rated up to 1600 amperes. The DDA-1600 features a modular design, with three separate modules that can be easily transported and connected.
Modules:
Features:
Resources:
Modules:
- The controller and instrumentation module, which contains the controls, instrumentation, and display. Megger DDA-1600 controller and instrumentation module
- The power module, which contains the high-current output transformer and controls. Megger DDA-1600 power module
- The output module, which contains the current sensors and connections for the circuit breaker under Megger DDA-1600 output module
The DDA-1600 is a versatile and powerful tool for testing low-voltage circuit breakers. It is easy to use and portable, making it ideal for use in the field.
Features:
Here are some of the key features of the Megger DDA-1600:
- Test current up to 1600 amperes
- Modular design for easy transport and setup
- Digital display with clear and easy-to-read measurements
- Built-in printer for documentation of test results
- Compliance with NEMA AB-4 test guidelines
