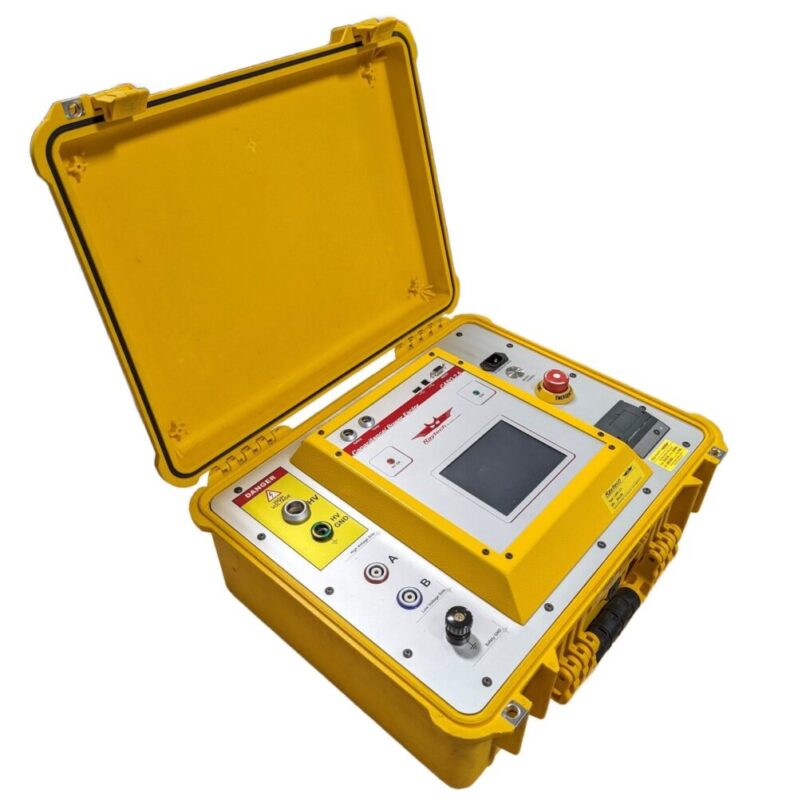

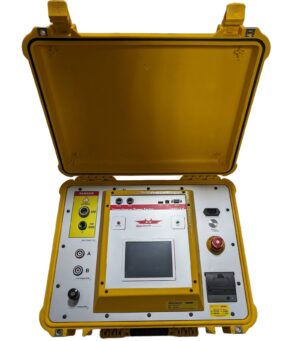

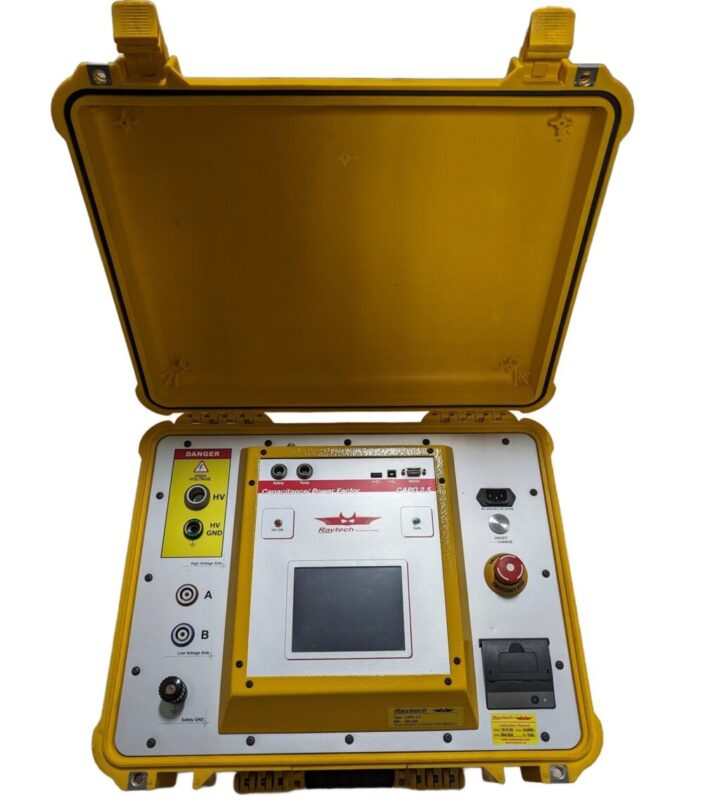

The Raytech CAPO 2.5 is a battery-operated, portable capacitance and tan δ power factor test instrument designed for the insulation properties measurement of a variety of equipment, including power transformers, bushings, and other kinds of insulation. It is built into a rugged case for field use and is known for its high precision and quality.
Features:
Specifications:
Accessories:
Accuracy:
Resources:
Features:
- Battery-operated, making it convenient to use
- Very light and portable – complete system weighs less than 22 kg (49 lbs.)
- Built-in standard capacitor
- Power factor cos ᵠ / dissipation factor tan δ reading
- Accurate and reliable
- Test frequency 10 Hz to 400 Hz
- Easy export of results with USB key
- Internal storage for over 10,000 test results
- External safety switch and safety ground detect for safe operation
- Temperature channel with user selectable correction
- Simple to operate using the color LCD touch screen with LED backlight
- Internal printer for printing results in the field
Specifications:
- L: 521 mm (20.5”) W: 432 mm (17”) H: 216 mm (8.5”)
- Weight: 22.2 kg (49 lbs.)
- Input Power: 85 to 264 VAC, 250W, or Battery Operated
- Test Voltage: Up to 2,500V
- Output Frequency: 10 Hz to 400 Hz
- Test Current: Up to 200 mArms

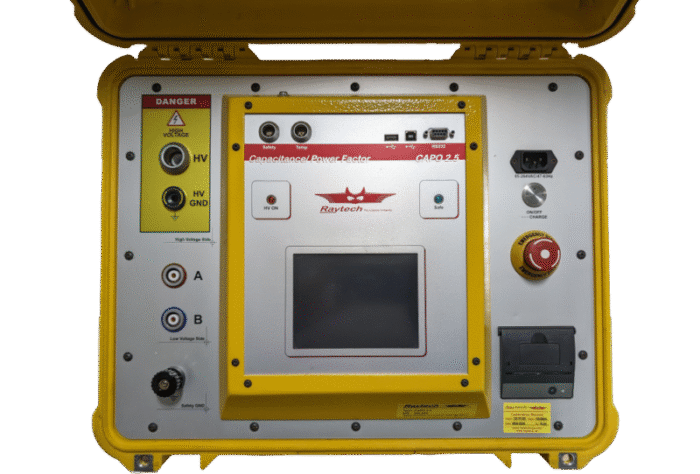

- Panel Display: 5.7” Color LCD with LED backlight and touch screen
- Interface: 2 USB 2.0 interfaces (host and device) and 9 Pin RS-232 serial
- Memory Storage: More than 10,000 measurements
- Front Panel: Sealed, anodized
- Temperature: Operating: –10°C to 60°C (14ºF to 140ºF), Storage: –20°C to 70°C (-4ºF to 158ºF)
Accessories:

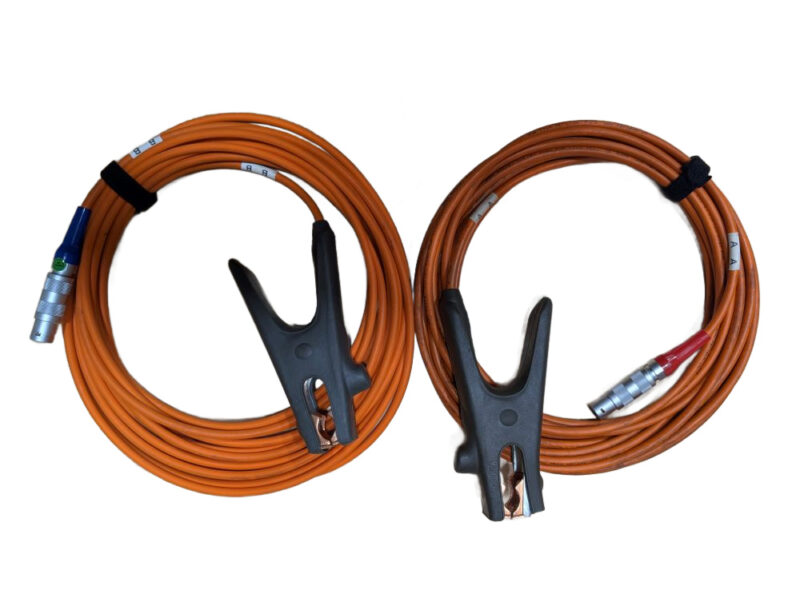

- 5090A-05001: HV Cable – 10m (32 ft.)
- 5090A-05002: HV Ground Cable – 10m (32 ft.)
- 5090A-05003: Test Lead A – Red, 10m (32 ft.)
- 5090A-05004: Test Lead B – Blue, 10m (32 ft.)
- 4080A-05001: Safety Ground Lead – 10m (32 ft.)
- 5090A-31001: Safety Switch – 2m (6.5 ft.)
- 1002A-07001: Power Cord – 6.09m (20 ft.)
- 2020A-23001: RS-232 Cable – 3m (10 ft.)
- 1003A-37001: A-B USB Cable – 3m (10 ft.)

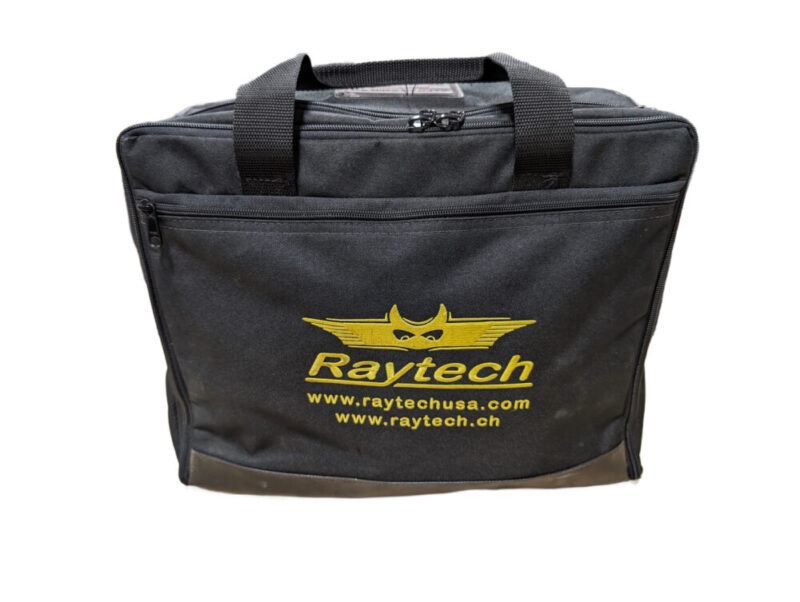

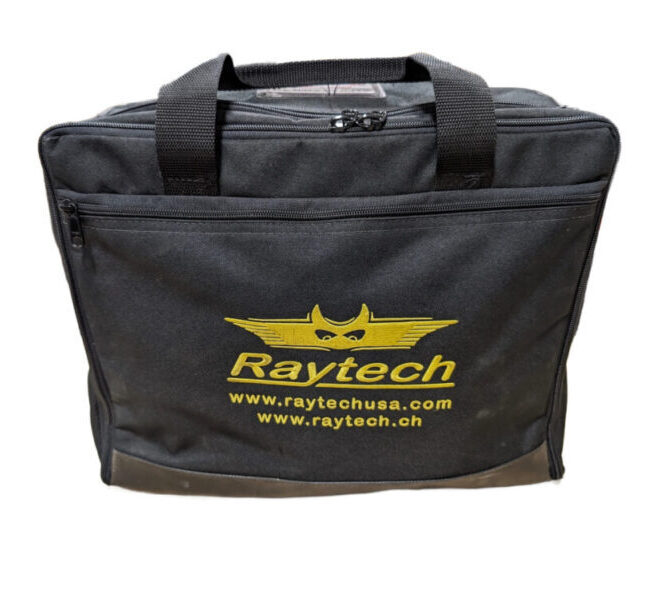

- 2040A-03004: Cable Bag with Shoulder Strap
- 1004A-27003: External USB Drive
- 2040A-08003: Touch Screen Stylus
- 2040X-18002: Paper Refill for Printer, Qty. 5
- 5090A-02001: Instruction Manual
- 5090X-10001: Certificate of Accuracy
Accuracy:
| Range | Resolution | Accuracy | |
| Dissipation Factor tan δ | 0…0.1 | 1 x 10-5 | ± 0.5% Rdg ± 1 x 10-4 |
| 0.1…1 | 1 x 10-4 | ± 0.5% Rdg ± 1 x 10-4 | |
| >1 | 3 Digits | ± 0.5% Rdg | |
| Power Factor cos ᵠ | 0 … 0.1 | 1 x 10-5 | ± 0.5% Rdg ± 1 x 10-4 |
| 0.1 … 1 | 1 x 10-4 | ± 0.5% Rdg ± 1 x 10-4 | |
| Capacitance @60 Hz | 0.00pF to 1.1 µF @ 500V | 0.01pF or 5 Digits | ± 0.3% Rdg ± 0.3pF |
| 0.00pF to 212 nF @ 2.5kV | 0.01pF or 5 Digits | ± 0.3% Rdg ± 0.3pF | |
| Capacitance @50 Hz | 0.00pF to 1.3 µF @ 500V | 0.01pF or 5 Digits | ± 0.3% Rdg ± 0.3pF |
| 0.00pF to 254 nF @ 2.5kV | 0.01pF or 5 Digits | ± 0.3% Rdg ± 0.3pF | |
| Test Voltage | Up to 2500V rms (45 … 400 Hz) | 1V | ± 0.5% Rdg ± 1V |
| Test Current | Up to 200 mArms | 0.1 µA or 4 Digits | ± 0.3% Rdg ±1µA |
| Output Power | 0 … 500VA | ||
| Output Frequency | 10 Hz … 400 Hz (Step 0.5 Hz) | 0.1 Hz | ± 0.01% |
