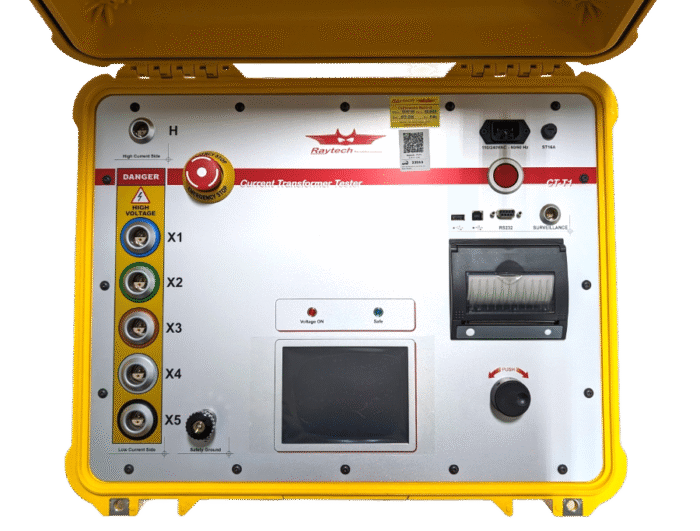

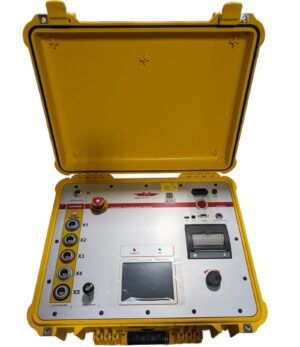

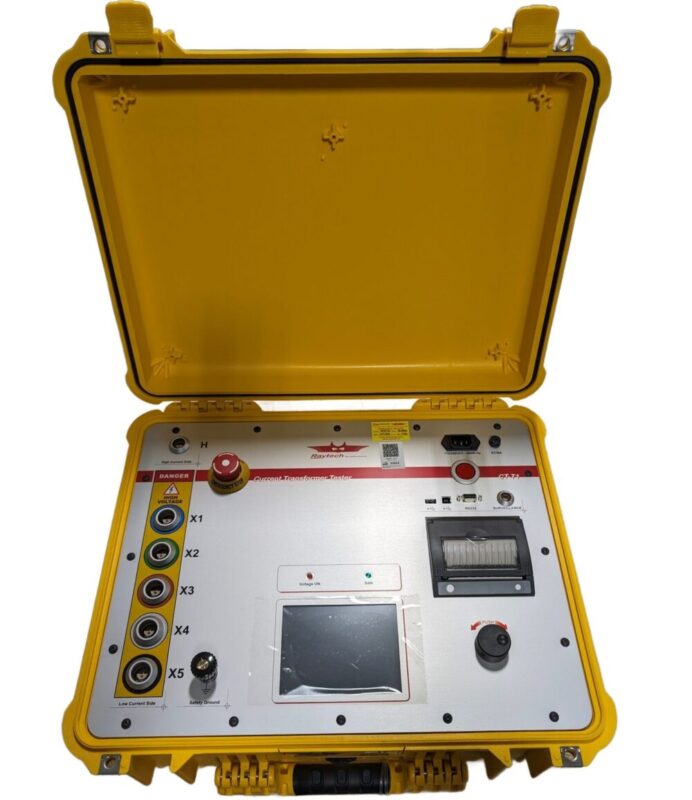

The Raytech CT-T1 is a microprocessor-based Current Transformer (CT) Tester designed for professional current transformer diagnostics. It’s known for its precision, ease of use, and wide range of features. Here’s a summary of its key characteristics:
Key Features:
Specifications:
Benefits:
Applications:
Accessories:
Resources:
Key Features:
- Measures:
- Turns ratio
- Excitation curve
- Knee points (ASA 10/50, IEEE 30°, IEEE 45°)
- Demagnetization
- Polarity
- 5 low side cables: Allow for easy connection to various CTs and tap combinations.
- Color touch display: Provides clear and intuitive user interface.
- Data storage: Internal and external memory for storing test results.
- 3-inch thermal printer: For on-site printing of test reports.
- Rugged construction: Built for field use.
Specifications:
- Dimensions: 521 mm (20.5”) W: 432 mm (17”) H: 216 mm (8.5”)
- Weight: 20 kg (44 lbs.)
- Input Power: 115/230 VAC, 50/60 Hz, auto ranging
- Panel Display: 5.7” Color LCD with backlight and touch screen, additional digipot
- Interface: 2 USB interfaces (host and device) and RS-232
- Memory Storage: More than 10,000 measurements
- Temperature: Operating: –10°C to 60°C (14ºF to 140ºF), Storage: –20°C to 70°C (-4ºF to 158ºF)
Benefits:
- Improved accuracy: Ensures that CTs are providing accurate measurements, which is critical for proper operation of power systems.
- Reduced downtime: Helps to identify and troubleshoot problems with CTs quickly and easily, preventing unnecessary downtime.
- Enhanced safety: Accurate CT measurements are essential for ensuring the safety of personnel and equipment.
- Ease of use: The CT-T1 is designed to be easy to use, even by technicians with limited experience.
Applications:
- Testing and verifying the accuracy of current transformers used in power systems.
- Identifying and troubleshooting problems with CTs.
- Commissioning and maintaining CTs.
Accessories:
- 4080A-05002: H Lead – 5m (16 ft.), Qty. 1

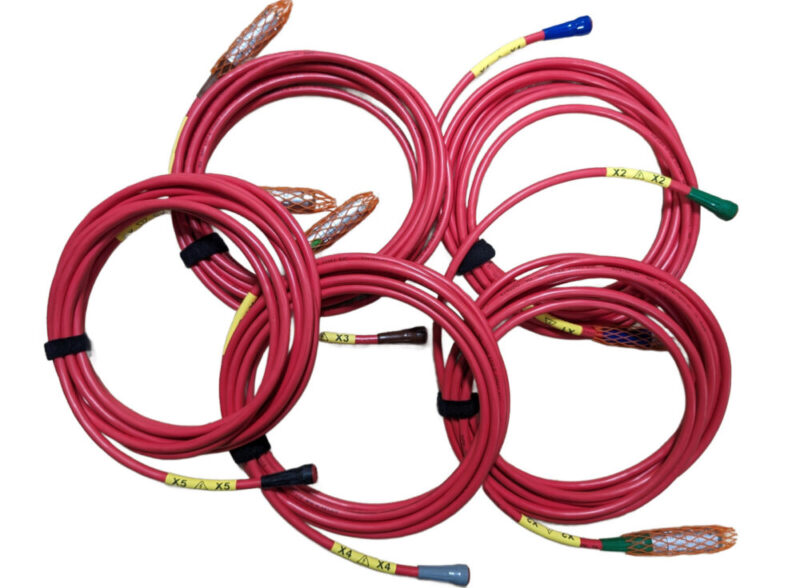

- 4080A-05014: X Leads – 5m (16 ft.), Qty. 5
- 4080A-05001: Safety Ground Lead – 10m (32 ft.)

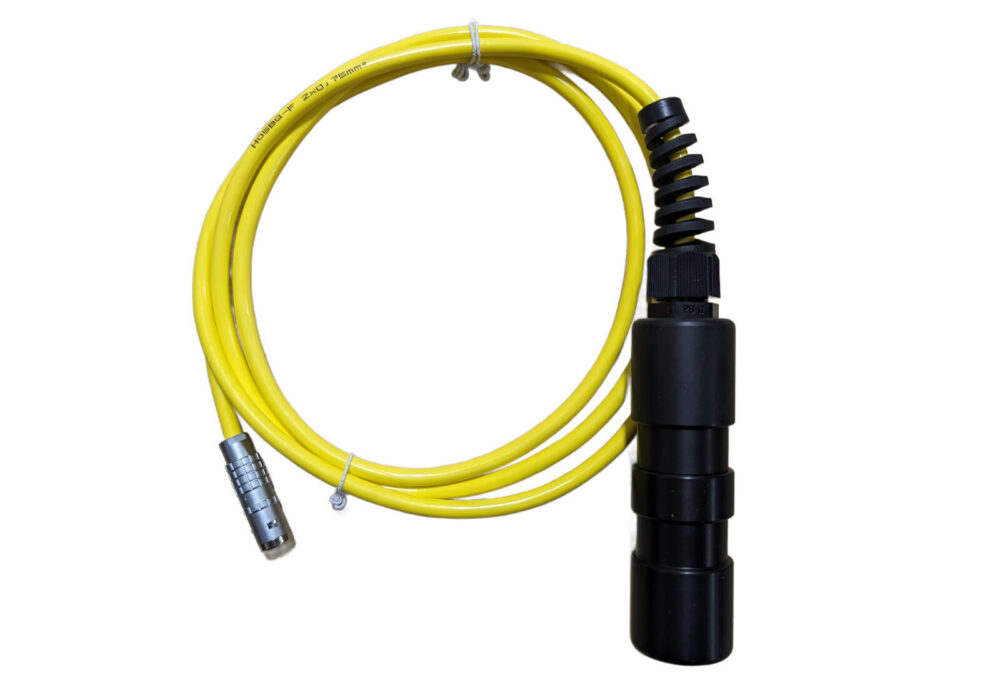

- 4080A-31001: Safety Switch – 2m (6.5 ft.)
- 4080A-05000: H Lead Extension – 5m (16 ft.), Qty. 1
- 4080A-05003: H Lead Adapter
- 4080A-05009: X Lead Clip Adapters, Qty. 5
- 2021A-05009: Power Cord – 7.62m (25 ft.)
- 4080X-18001: Paper Refill for Printer – 5 rolls
- 1004A-27003: External USB Drive
- 2040A-08003: Touch Screen Stylus
- 1003A-37001: A-B USB Cable 3m (10 ft.)
- 2021X-07002: Spare Fuse Set, Fast-Acting 16A, Qty. 5

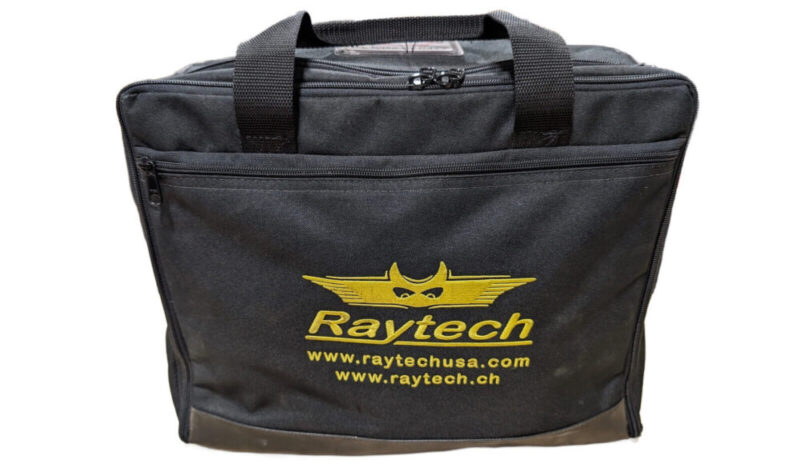

- 2040A-03004: Cable Bag with Shoulder Strap
- 4080A-02001: Instruction Manual
- 4080X-10001: Certificate of Accuracy
