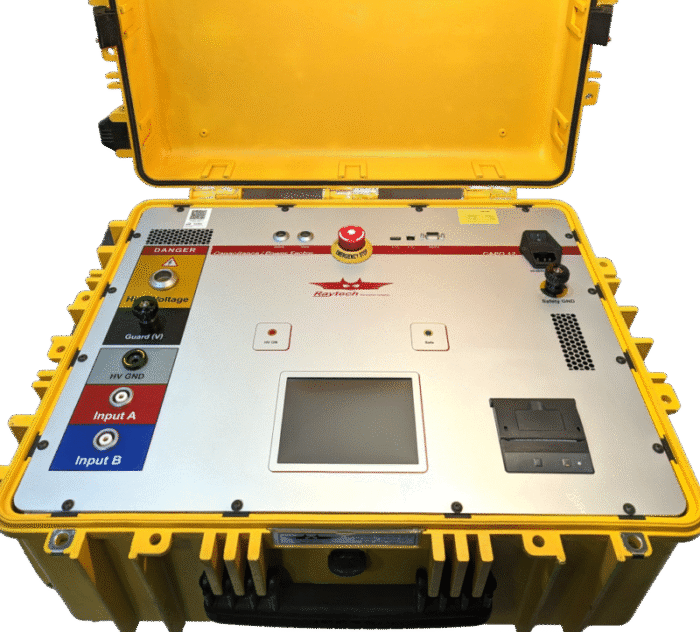

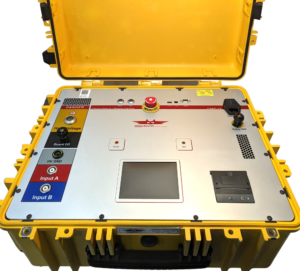

The Raytech CAPO 12 is a sophisticated piece of electrical testing equipment. It’s a fully automatic instrument designed to measure Capacitance, Insulation Power Factor, and Dissipation Factor (tan δ). These measurements are crucial for assessing the condition of electrical insulation in various equipment.
Here’s a summary of it’s features:
Capabilities:
Key Features:
Applications:
Resources:
Capabilities:
It can perform a range of measurements, including:Â
- Insulation Power Factor (cos áµ )
- Dissipation Factor (tan δ)
- Capacitance
- Inductance
- Excitation
- Quality Factor
- Power Loss (watts)
It operates at a variable frequency (10Hz to 400Hz) and can handle test voltages up to 12kVAC.
Key Features:
- Self-calibration and system diagnostics.
- Built-in standard capacitor.
- Internal storage for test results.
- Data exchange via USB and RS232 connections.

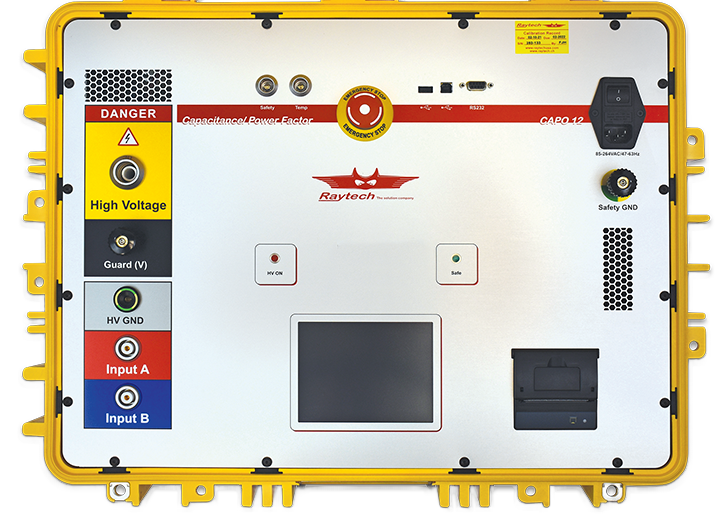

- Color LCD touchscreen display.
- Built-in thermal printer.

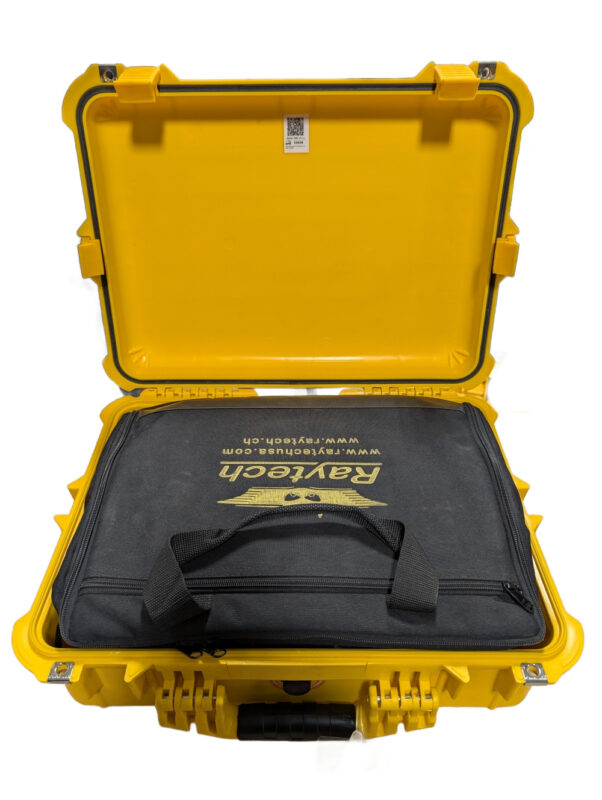

- Rugged design for field use.
Applications:
- It’s used for testing the insulation of power transformers, bushings, and other high-voltage electrical apparatus.
