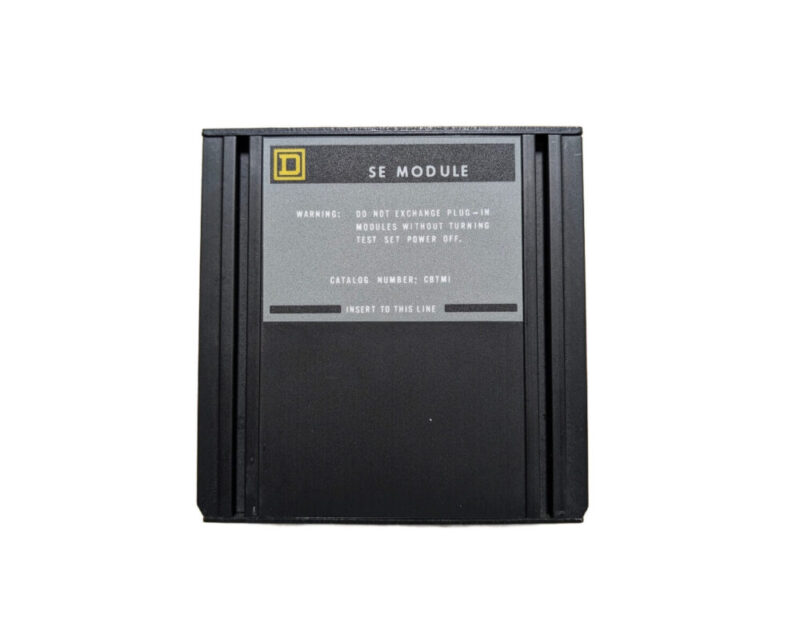

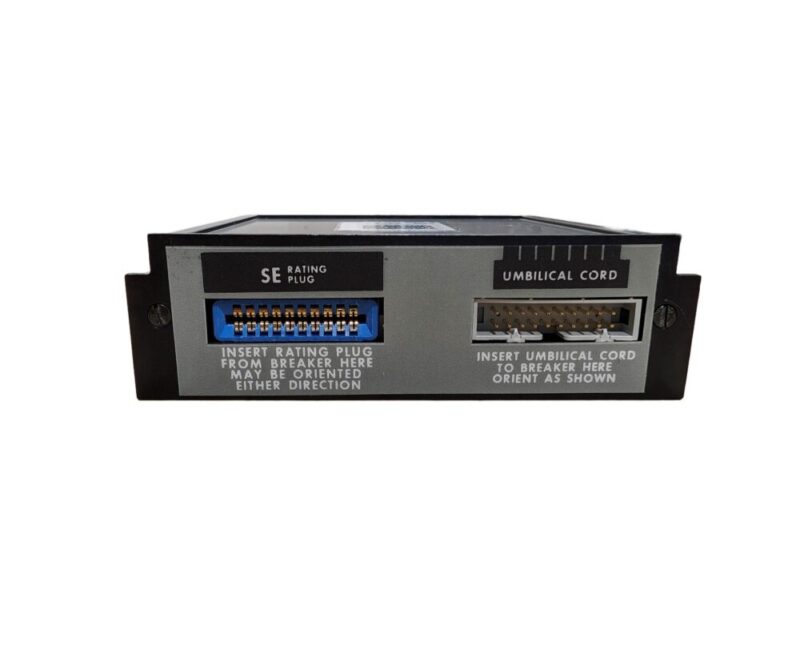

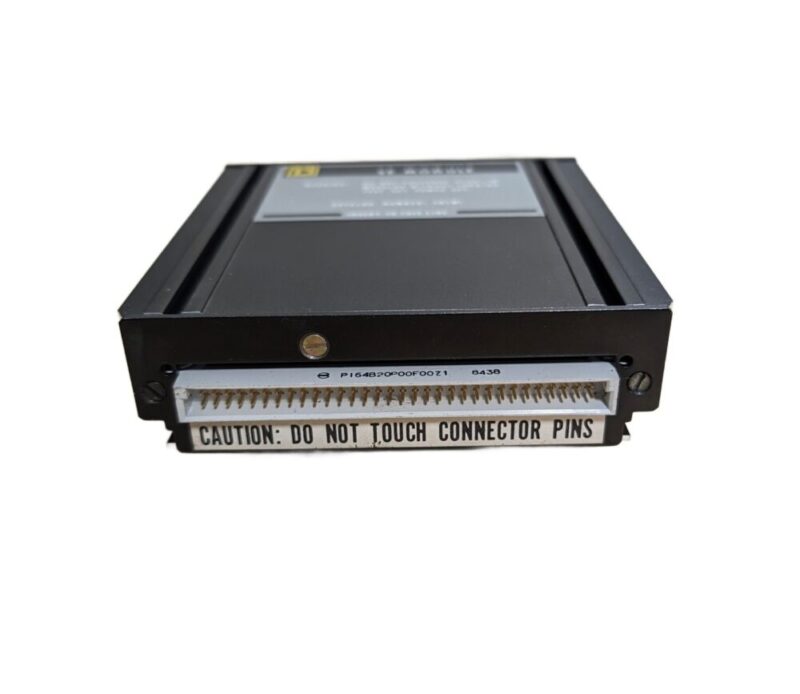

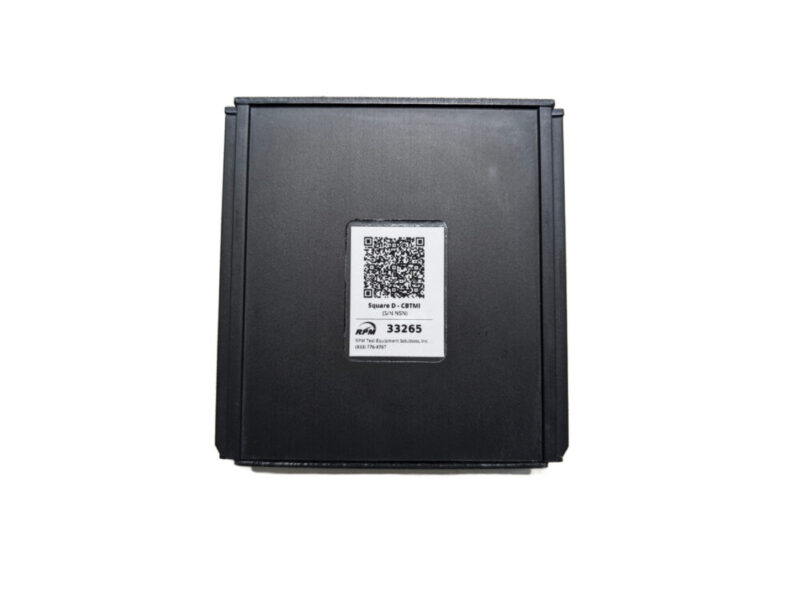

The Square D SE Module CBTM1 used with UTS3 & CBTU1 Universal Test Sets
Functions:
Key Features:
Applications:
Functions:
- It’s an auxiliary module used with UTS & CBTU1 Universal Test Sets to test and diagnose Square D electronic trip units.
- It specifically enables the test set to communicate with SE trip units (Strom-Einstellbereich or current-setting range units).
- It provides the necessary interface and functionality for comprehensive testing of these trip units.
Key Features:
- Compact and lightweight:Â For portability and easy handling.
- Rugged construction:Â Designed for field use and frequent handling.
- Easy connection:Â Simple setup with clear labels and color-coded wires.
- Reliable performance:Â Ensures accurate testing and diagnosis.
- Specific compatibility: Works only with UTS & CBTU1 Universal Test Sets and SE trip units.
Applications:
- Testing and diagnosing SE trip units
- Verifying trip settings
- Analyzing trip history
- Identifying potential problems
- Maintaining circuit breaker reliability
